(90.150.BG[05]) - STD + VAR - 391606 - CAB ROOF, SOFT TRIM, ISO - END YR 09-OCT-2012

Запчасти Case IH FARMALL 115U (90.150.BG[05]) - STD + VAR - 391606 - CAB ROOF, SOFT TRIM, ISO - END YR 09-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

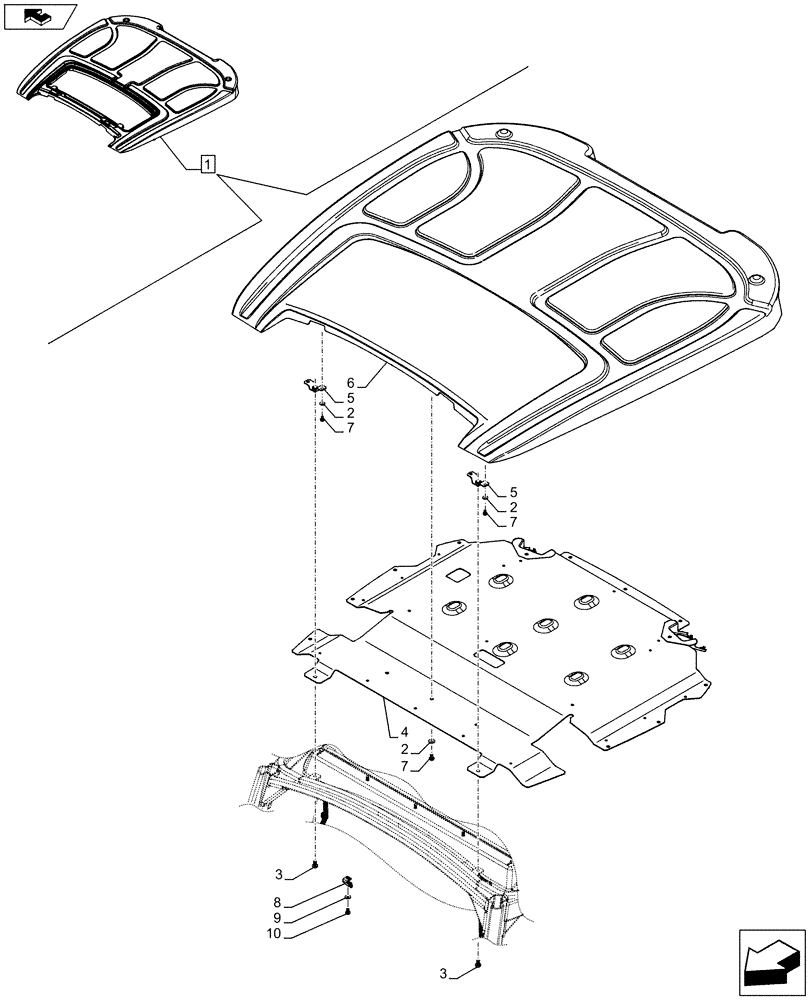

Схема запчастей Case IH FARMALL 115U - (90.150.BG[05]) - STD + VAR - 391606 - CAB ROOF, SOFT TRIM, ISO - END YR 09-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
7
2
7
5
10
3
3
8
2
5
9
6
4
1
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84576267

ROOF

ASSY, Incl 2 - 7

1шт.

2

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

18шт.

3

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

2шт.

4

84310702

STEEL PLATE

1шт.

5

84310794

BRACKET

2шт.

6

NSS

NOT SOLD SEPARAT

Roof, Incl in 1

1шт.

7

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

18шт.

8

84337732

BRACKET

1шт.

9

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

10

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.
