(90.150.BG[04]) - VAR - 339606 - CAB ROOF - SIDE PANEL, ISO - END YR 09-OCT-2012

Запчасти Case IH FARMALL 115U (90.150.BG[04]) - VAR - 339606 - CAB ROOF - SIDE PANEL, ISO - END YR 09-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

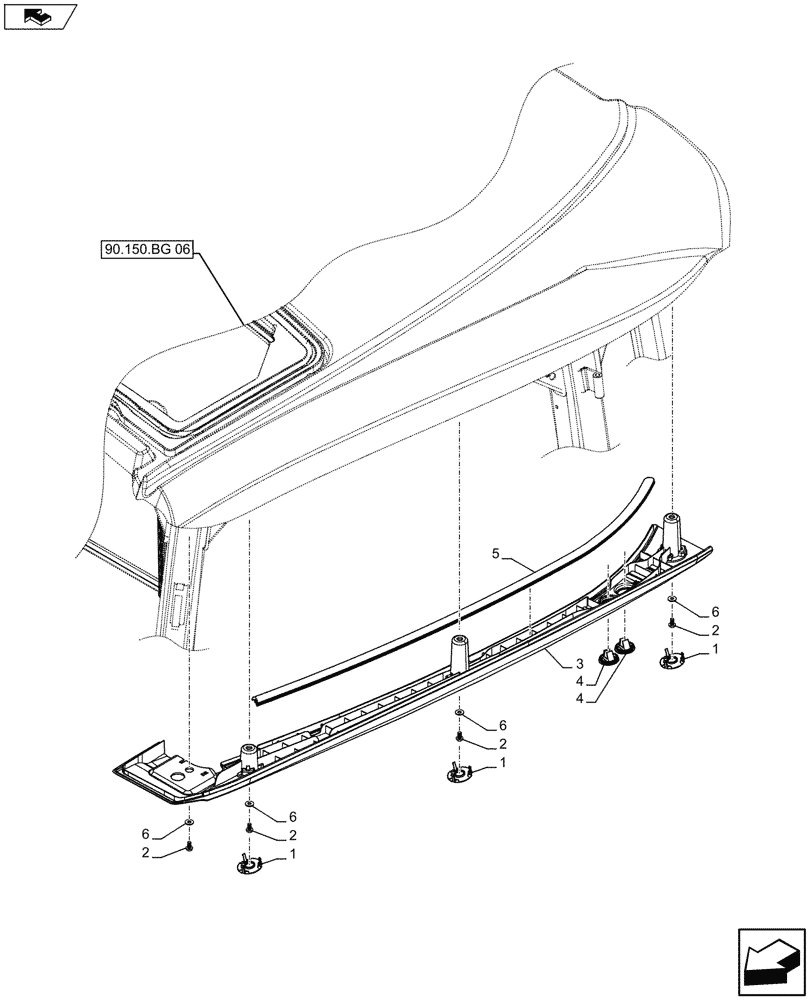

Схема запчастей Case IH FARMALL 115U - (90.150.BG[04]) - VAR - 339606 - CAB ROOF - SIDE PANEL, ISO - END YR 09-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
5
2
1
6
4
2
6
2
6
6
4
home
90.150.bg 06
2
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84317182

PLUG,44mm OD, Black

6шт.

2

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

8шт.

3

84317191

PANEL

LH

1шт.

3

84317190

PANEL

RH

1шт.

4

84317184

PLUG,35mm OD, Black

4шт.

5

84275319

RUBBER SEAL,897mm L

2шт.

6

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

8шт.
