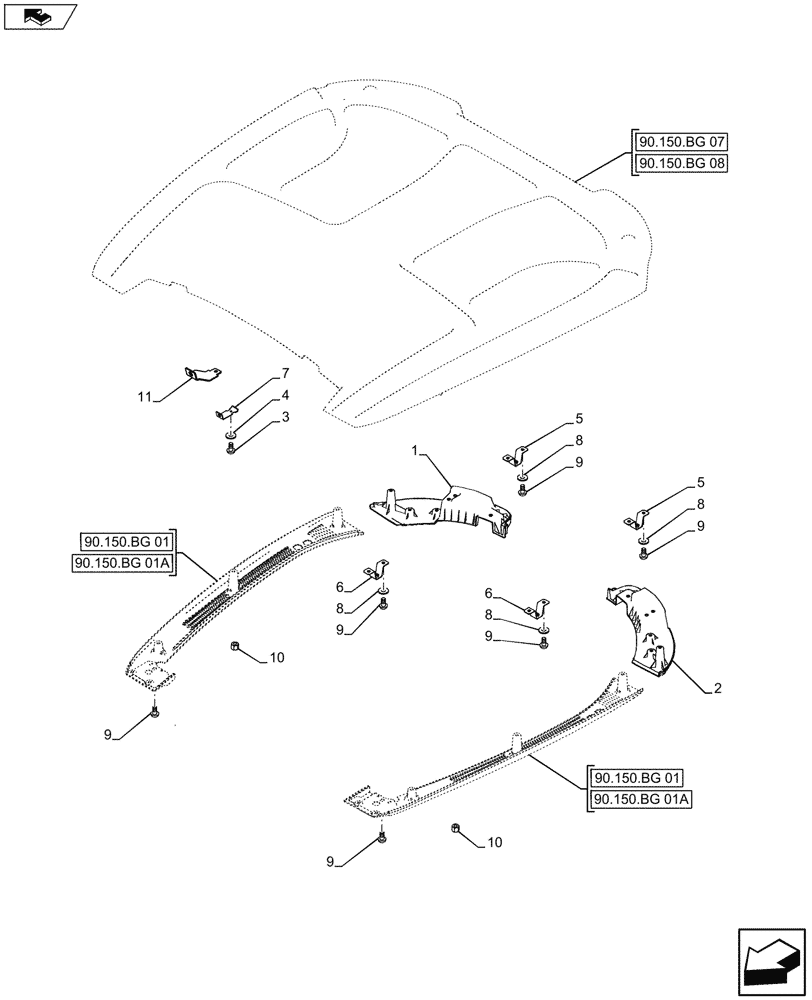

Запчасти Case IH FARMALL 115U (90.150.BG[03]) - STD + VAR - 336606, 391606 - CAB ROOF - PLATE - NA (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84317188

PANEL

RH

1шт.

2

84317189

PANEL

LH

1шт.

3

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.

4

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

5

84317193

BRACKET

2шт.

6

84317195

BRACKET

2шт.

7

47398004

BRACKET

, Years: -07-MAY-14

1шт.

8

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

9

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

12шт.

10

16104114

LOCK NUT,M8, Cl 8

M8, 8 DAC

4шт.

11

47613002

BRACKET

, Start Year: 08-MAY-14

1шт.
