Запчасти Case IH FARMALL 115U (90.150.BG[01A]) - STD + VAR - 336606, 391606 - CAB ROOF - COVER - BEGIN YR 10-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

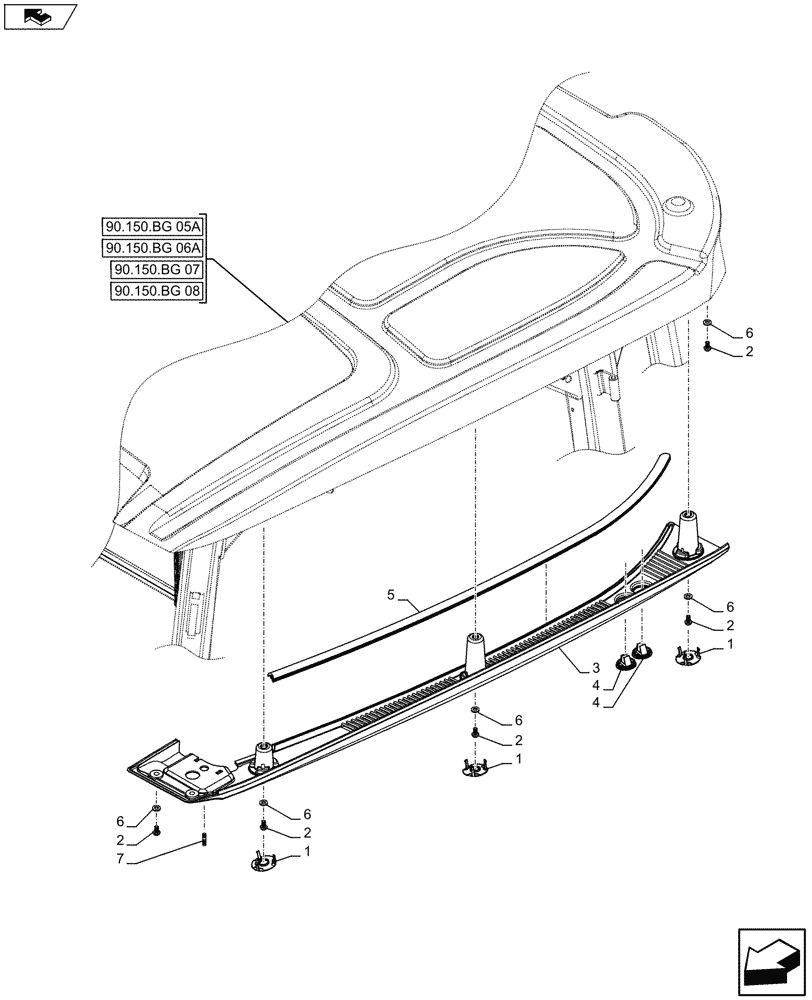

Схема запчастей Case IH FARMALL 115U - (90.150.BG[01A]) - STD + VAR - 336606, 391606 - CAB ROOF - COVER - BEGIN YR 10-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
90.150.bg 06a
2
7
2
6
1
4
90.150.bg 07
90.150.bg 05a
1
home
1
90.150.bg 08
5
2
2
4
6
6
2
6
6

Артикул

Название

Примечание

Количество

1

84317182

PLUG,44mm OD, Black

6шт.

2

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

12шт.

3

47410992

PANEL

LH

1шт.

3

47410967

PANEL

RH

1шт.

4

84317184

PLUG,35mm OD, Black

4шт.

5

84275319

RUBBER SEAL,897mm L

2шт.

6

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

12шт.

7

13516924

STUD,M8 x 34mm L, Cl. 8.8

2шт.

Выбрано товаров: 8
