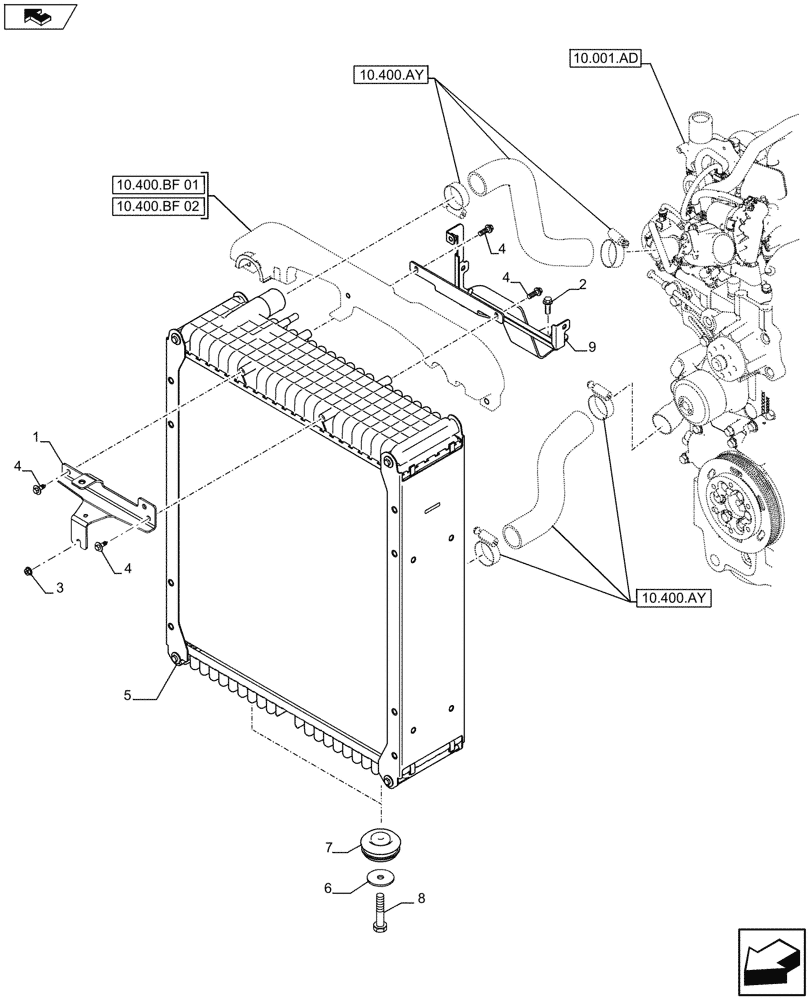

Запчасти Case IH FARMALL 115U (10.400.BE[01A]) - STD + VAR - 330200, 390200 - RADIATOR - BEGIN YR 14-JAN-2013 (10) - ENGINE

1

47413731

SUPPORT

Front

1шт.

2

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

3

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

1шт.

4

16286124

BOLT,M6 x 20mm, 8.8 DAC

4шт.

5

84288077

RADIATOR

1шт.

6

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

1шт.

7

82023389

ISOLATOR,67mm OD x 35.5mm L

1шт.

8

11343821

BOLT,Hex, M10 x 1.25 x 50, 8.8

2шт.

9

84317359

SUPPORT

Rear

1шт.
