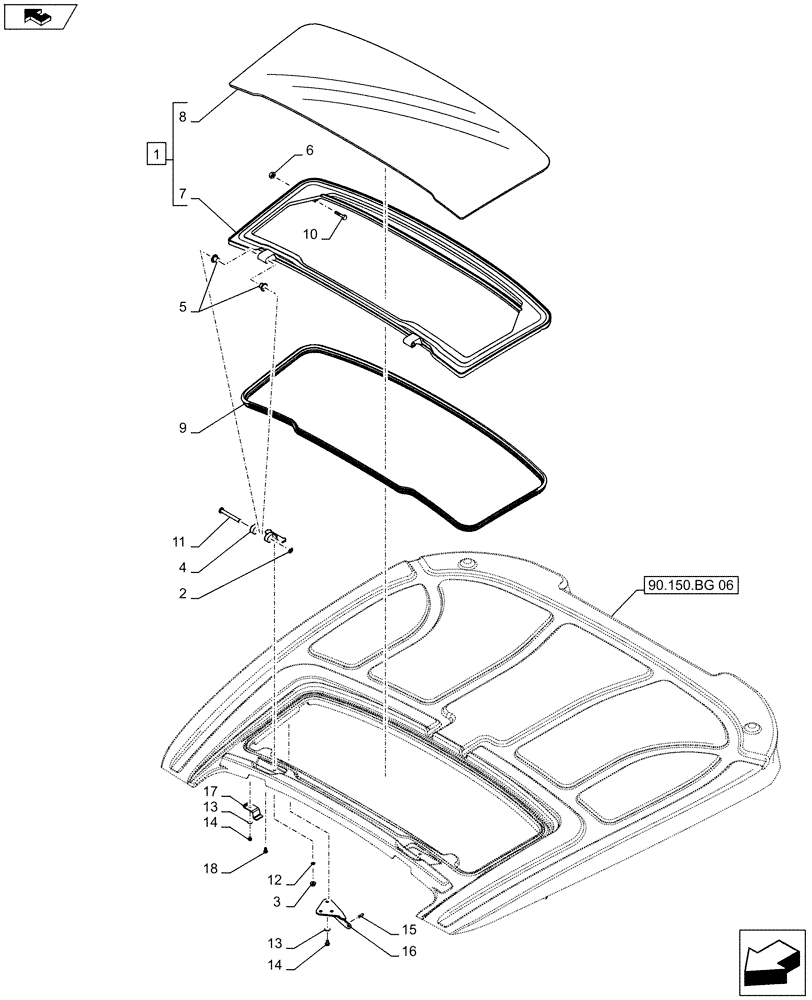

Запчасти Case IH FARMALL 115U (90.150.BC[01]) - VAR - 336606 - CAB ROOF - HATCH - W/ OPENABLE HIGH VISIBILITY PANEL - END YR 09-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47402688

WINDOW

ASSY, Incl 7, 8

1шт.

2

800-436

CIRCLIP,M6

2шт.

3

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

4

84585048

HINGE

RH

1шт.

4

84585046

HINGE

LH

1шт.

5

84276011

BUSHING,8mm ID x 10mm OD x 11mm L

4шт.

6

80043416

NUT,M5

2шт.

7

NSS

NOT SOLD SEPARAT

Frame, Incl in 6

1шт.

8

84222294

GLASS

1шт.

9

84272323

RUBBER SEAL,2605mm L

1шт.

10

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

2шт.

11

84277677

PIN,8mm OD x 68mm L

2шт.

12

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

13

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

8шт.

14

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

8шт.

15

14600670

LOCK PIN,M5 x 16, Slotted

2шт.

16

84604010

BRACKET

RH

1шт.

16

84603996

BRACKET

LH

1шт.

17

84319350

BRACKET

2шт.

18

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

2шт.
