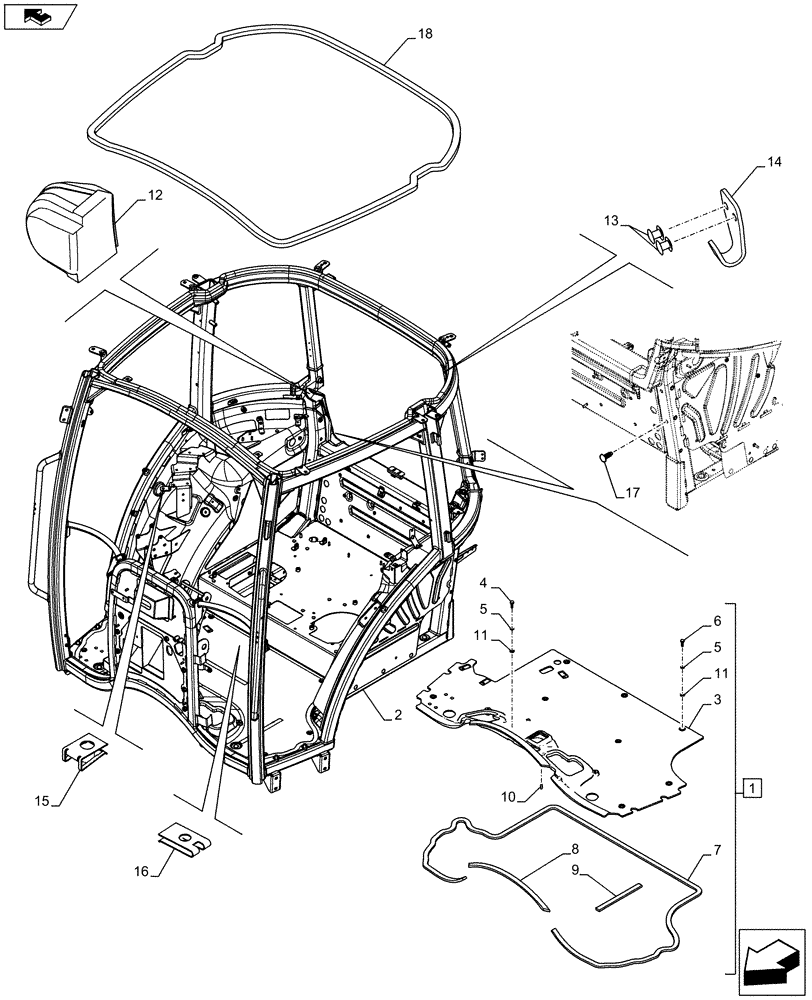

Запчасти Case IH FARMALL 115U (90.150.AC[03]) - VAR - 339606 - CAB FRAME - INSIDE, ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47402082

CAB FRAME

ASSY, Incl 2 - 10, Years: -27-NOV-13

1шт.

1

47524718

FRAME

ASSY, Incl 2 - 11, Years: 28-NOV-13-30-JUN-14

1шт.

1

47603677

FRAME

ASSY, Incl 2 - 11, Start Year: 01-JUL-14

1шт.

2

NSS

NOT SOLD SEPARAT

Frame, Incl in 1

1шт.

3

84316786

CARPET

1шт.

4

86639144

BOLT,Hex, Lock, M8 x 20, Cl 10.9

1шт.

5

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

9шт.

6

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

8шт.

7

84555865

SEALING STRIP,20mm W x 3500mm L x 8mm Thk

, Years: -12-OCT-14

1шт.

7

47547815

SEAL

, Start Year: 13-OCT-14

1шт.

8

84555868

SEAL,510mm L

1шт.

9

84555891

SEALING STRIP,20mm W x 250mm L x 8mm Thk

3шт.

10

11500124

STUD,M6 x 23mm L, Cl 8.8

4шт.

11

47546193

RUBBER WASHER,12mm ID x 25mm OD x 4mm Thk

, Start Year: 13-OCT-14

9шт.

12

47415861

PLUG

1шт.

13

14642791

RIVET,Tr Hd, M4.8 x 12, Aluminum

2шт.

14

84496617

COAT HOOK

1шт.

15

14189071

SPRING NUT,M6

1шт.

16

14371774

SPRING NUT,M6, U, 12mm long

22шт.

17

14589987

PLUG,9.5mm OD x 23.5mm L, Black

4шт.

18

47411372

RUBBER SEAL,30mm W x 4530mm L x 20mm Thk

1шт.
