Запчасти Case IH FARMALL 115U (90.124.AE[17]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION - PREMIUM, W/ ELECTROHYDRAULIC REMOTES (90) - PLATFORM, CAB, BODYWORK AND DECALS

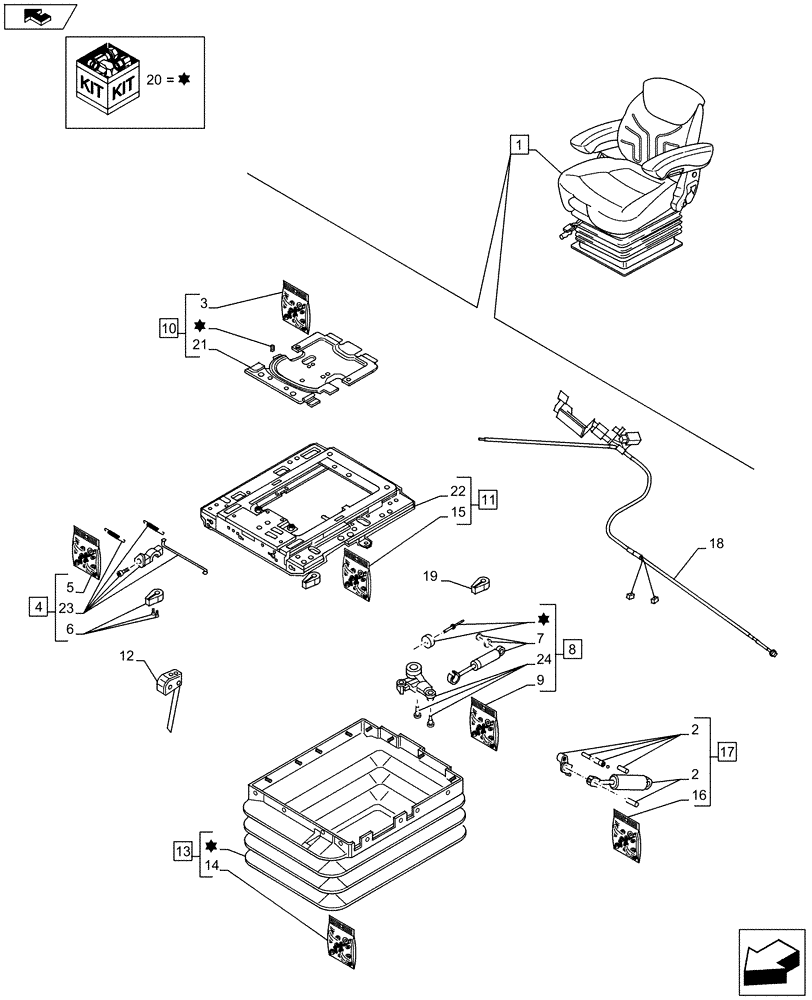

Схема запчастей Case IH FARMALL 115U - (90.124.AE[17]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION - PREMIUM, W/ ELECTROHYDRAULIC REMOTES (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
9
11
20
20
16
4
8
23
10
20
18
20
6
13
1
7
24
19
14
2
17
22
15
21
12
2
5
3
20

Артикул

Название

Примечание

Количество

1

47384166

DRIVER SEAT

ASSY, Incl 2 - 24, Years: -14-APR-13

1шт.

1

47488669

DRIVER SEAT

ASSY, Incl 2 - 24, Start Year: 15-APR-13

1шт.

2

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 17

1шт.

3

84191006

REPAIR KIT

Small Parts Cover

1шт.

4

82035117

KIT

ASSY, Incl 5, 6, 23

1шт.

5

84191015

REPAIR KIT

Small Parts Adjustment

1шт.

6

1472163

HANDLE

1шт.

7

84190985

SHOCK ABSORBER

1шт.

8

84190983

SHOCK ABSORBER

ASSY, Incl 7, 9, 20, 24

1шт.

9

84191002

REPAIR KIT

Small Parts Fai.

1шт.

10

84190947

COVER

ASSY, Incl 3, 20, 21

1шт.

11

84190966

PLATE

ASSY, Incl 6, 15, 22

1шт.

12

47540039

LEVEL

1шт.

13

84190978

BELLOWS

ASSY, Incl 14, 20

1шт.

14

84191003

REPAIR KIT

Mounting Parts for Bellow

1шт.

15

84191010

REPAIR KIT

Small Parts Suspension

1шт.

16

84190998

SERVICE KIT

Small Parts Shock Absorber

1шт.

17

84191071

KIT

ASSY, Incl 16

1шт.

18

84191074

WIRE HARNESS

1шт.

19

82035123

HANDLE

1шт.

20

84190975

REPAIR KIT

Set of Wear Parts

1шт.

21

NSS

NOT SOLD SEPARAT

Cover, Incl in 11

1шт.

22

NSS

NOT SOLD SEPARAT

Plate, Incl in 12

1шт.

23

NSS

NOT SOLD SEPARAT

Locking Lever, Incl in 4

1шт.

24

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 8

1шт.

Выбрано товаров: 25
