(10.400.AY) - STD + VAR - 330200, 390200 - RADIATOR HOSE

Запчасти Case IH FARMALL 115U (10.400.AY) - STD + VAR - 330200, 390200 - RADIATOR HOSE (10) - ENGINE

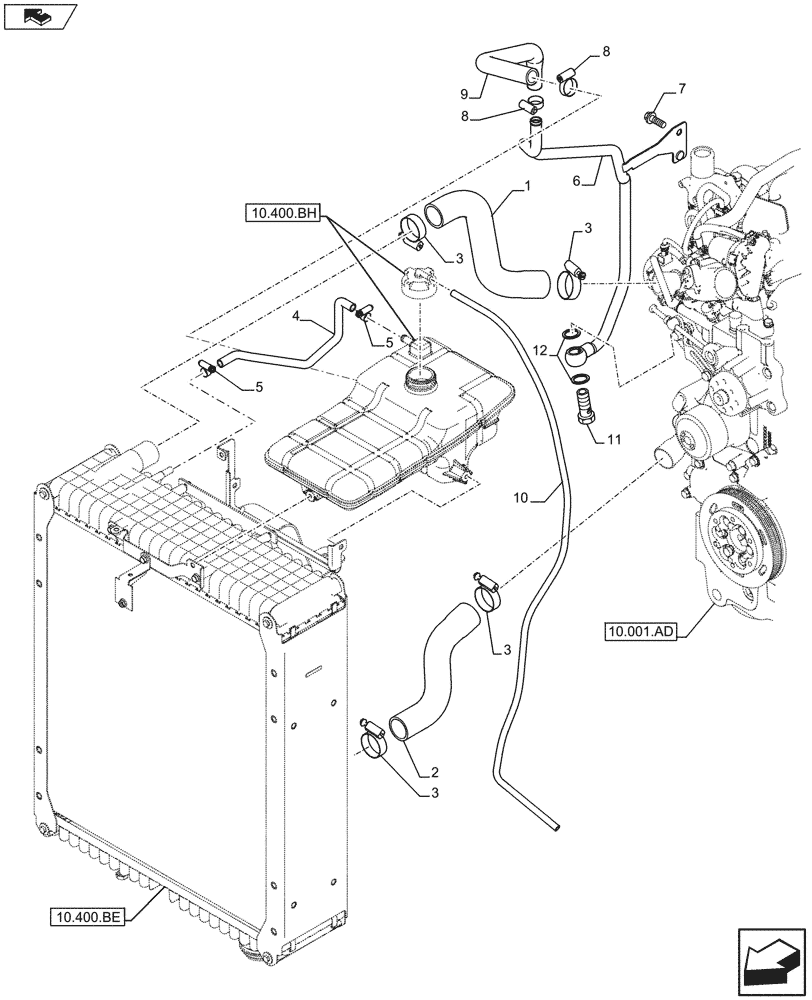

Схема запчастей Case IH FARMALL 115U - (10.400.AY) - STD + VAR - 330200, 390200 - RADIATOR HOSE (10) - ENGINE
10.001.ad
11
home
12
4
8
3
8
10.400.be
2
5
5
10.400.bh
10
7
3
home
6
3
1
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87735931

RADIATOR HOSE

Radiator to Engine, Warm

1шт.

2

84235120

RADIATOR HOSE,38mm ID

Radiator to Engine, Cold

1шт.

3

82039347

HOSE CLAMP,35mm - 50mm, Worm Gear

4шт.

4

84194185

PIPE

Radiator to Tank

1шт.

5

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

2шт.

6

84333477

TUBE

Return Pipe to Tank

1шт.

7

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

8

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

2шт.

9

84309966

RETURN PIPE

1шт.

10

84335422

PIPE

1шт.

11

5170235

BANJO BOLT,M18 x 1.5 x 35mm

1шт.

12

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.
