(90.124.AE[13]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM, W/ ELECTROHYDRAULIC REMOTES

Запчасти Case IH FARMALL 115U (90.124.AE[13]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM, W/ ELECTROHYDRAULIC REMOTES (90) - PLATFORM, CAB, BODYWORK AND DECALS

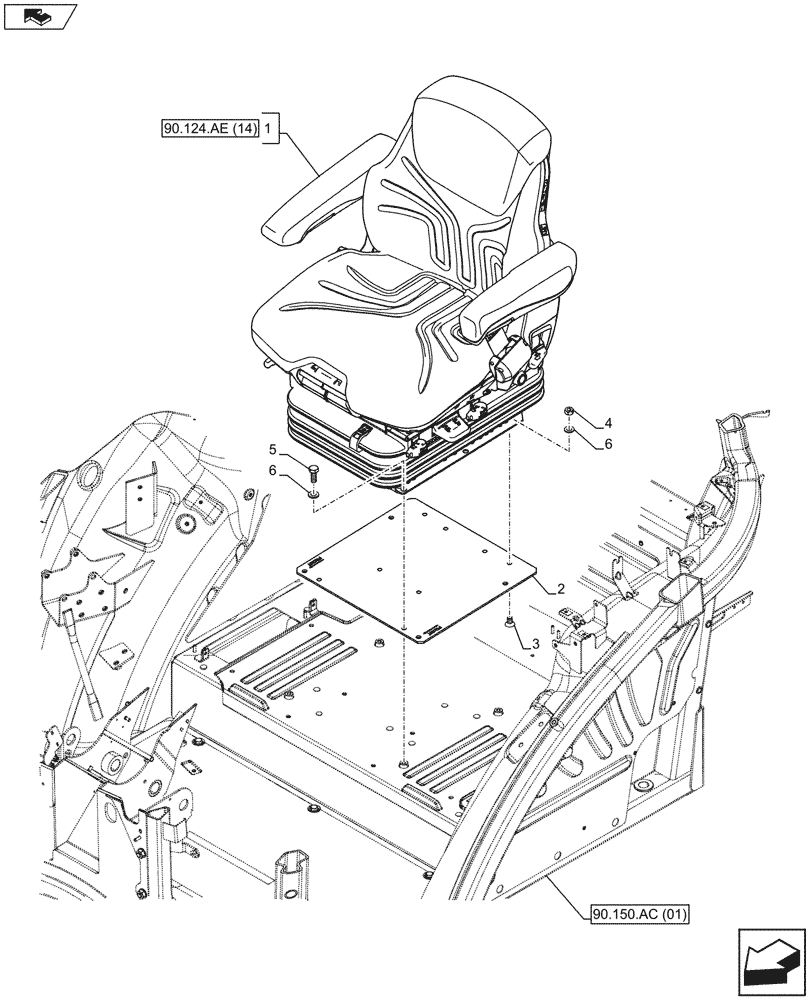

Схема запчастей Case IH FARMALL 115U - (90.124.AE[13]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM, W/ ELECTROHYDRAULIC REMOTES (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
5
1
4
6
2
3
6
home
90.124.ae (14)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47384166

DRIVER SEAT

ASSY, Years: -14-APR-13

1шт.

1

47488669

DRIVER SEAT

ASSY, Start Year: 15-APR-13

1шт.

2

84469342

PLATE

1шт.

3

47394540

SCREW,CSS, M8 x 14mm, Cl 8.8

4шт.

4

16100814

NUT,M8, Cl 8, DAC

4шт.

5

16043334

BOLT,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd

4шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.
