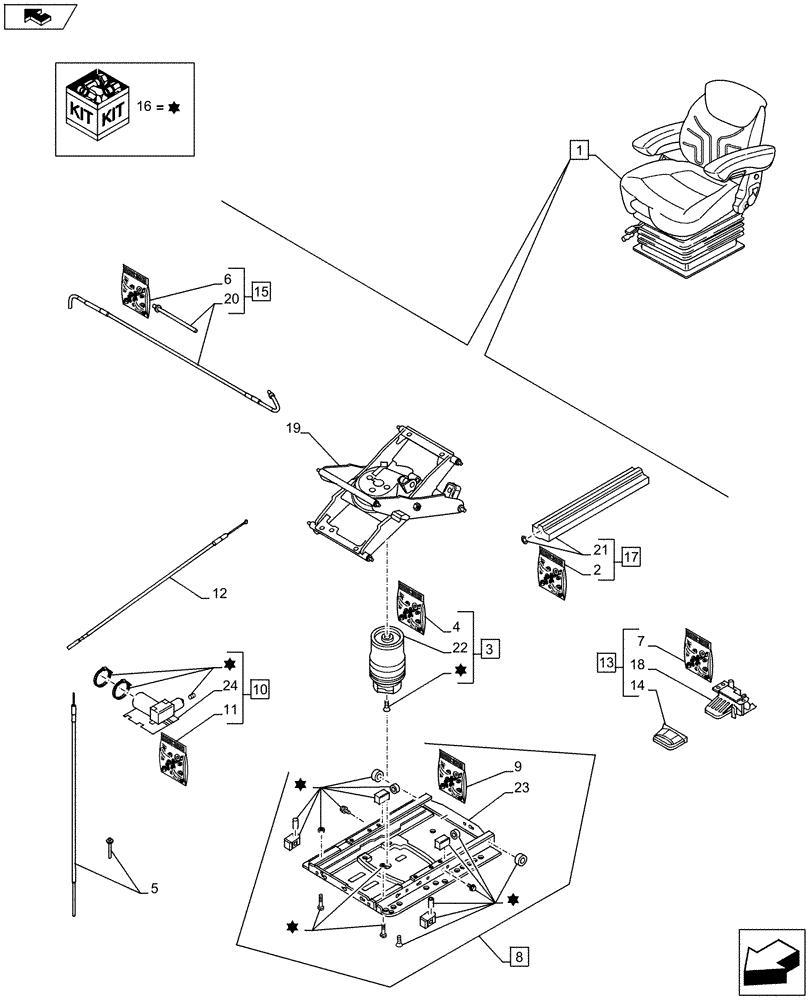

Запчасти Case IH FARMALL 115U (90.124.AE[12]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84468823

DRIVER SEAT

ASSY, Incl 2 - 24, Years: -27-MAR-13

1шт.

1

47476148

DRIVER SEAT

ASSY, Incl 2 - 24, Start Year: 28-MAR-13

1шт.

2

84191086

REPAIR KIT

Small Parts Added Air Reservoir

1шт.

3

84190972

SHOCK ABSORBER

ASSY, Incl 4, 16, 22

1шт.

4

84191012

REPAIR KIT

Small Parts Air Spring

1шт.

5

84191077

TUBE

1шт.

6

84191016

REPAIR KIT

Small Parts Inner Tube

1шт.

7

84191017

REPAIR KIT

Small Parts Handle

1шт.

8

84190976

PLATE

ASSY, Incl 9, 16, 23

1шт.

9

84191014

REPAIR KIT

Small Parts Suspension

1шт.

10

84190980

AIR COMPRESSOR

ASSY, Incl 11, 16, 24

1шт.

11

84191008

REPAIR KIT

Small Parts Compressor

1шт.

12

84190997

BOWDEN CONTROL

1шт.

13

345107A1

LEVER

ASSY, Incl 7, 14, 18

1шт.

14

84191000

HANDLE

1шт.

15

84191079

KIT

ASSY, Incl 6, 20

1шт.

16

84190975

REPAIR KIT

1шт.

17

84191082

SERVICE KIT

ASSY, Incl 2, 21

1шт.

18

NSS

NOT SOLD SEPARAT

Lever, Incl in 13

1шт.

19

NSS

NOT SOLD SEPARAT

Swing Arm, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Inner Tube, Incl in 15

1шт.

21

NSS

NOT SOLD SEPARAT

Added Air Reservoir, Incl in 17

1шт.

22

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 3

1шт.

23

NSS

NOT SOLD SEPARAT

Plate, Incl in 8

1шт.

24

NSS

NOT SOLD SEPARAT

Air Compressor, Incl in 10

1шт.
