(90.124.AE[10]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM

Запчасти Case IH FARMALL 115U (90.124.AE[10]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM (90) - PLATFORM, CAB, BODYWORK AND DECALS

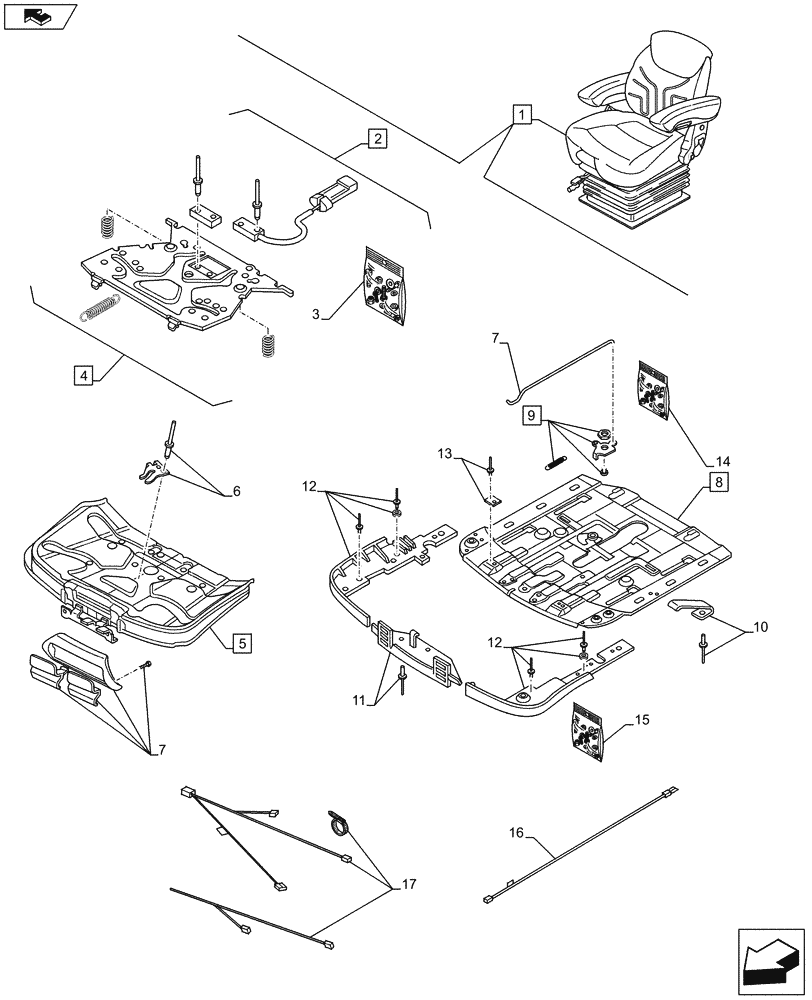

Схема запчастей Case IH FARMALL 115U - (90.124.AE[10]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
4
9
10
14
11
7
3
6
5
16
2
13
8
17
15
12
7
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84468823

DRIVER SEAT

ASSY, Incl 2 - 17, Years: -27-MAR-13

1шт.

1

47476148

DRIVER SEAT

ASSY, Incl 2 - 15, 17, Start Year: 28-MAR-13

1шт.

2

84525783

SWITCH

ASSY, Incl 3

1шт.

3

84191201

SET OF PARTS

Small Parts Seat Switch

1шт.

4

84191141

PLATE

ASSY, Incl 3

1шт.

5

84191153

ADJUSTER

ASSY, Incl 6, 7

1шт.

6

1-34-751-739

FIXING PLATE

1шт.

7

84191160

TRIGGER

1шт.

8

84191167

ADJUSTER

ASSY, Incl 9 - 13, 15

1шт.

9

345775A1

LEVER

ASSY, Incl 14

1шт.

10

84191175

SEAT PLATE

1шт.

11

1-34-751-728

COVER

1шт.

12

1-34-751-727

COVER

1шт.

13

84191178

SET OF PARTS

1шт.

14

84191203

CONTROL LEVER

1шт.

15

84191202

SET OF PARTS

1шт.

16

47540004

WIRE HARNESS

, Years: -27-MAR-13

1шт.

17

84191207

KIT

1шт.
