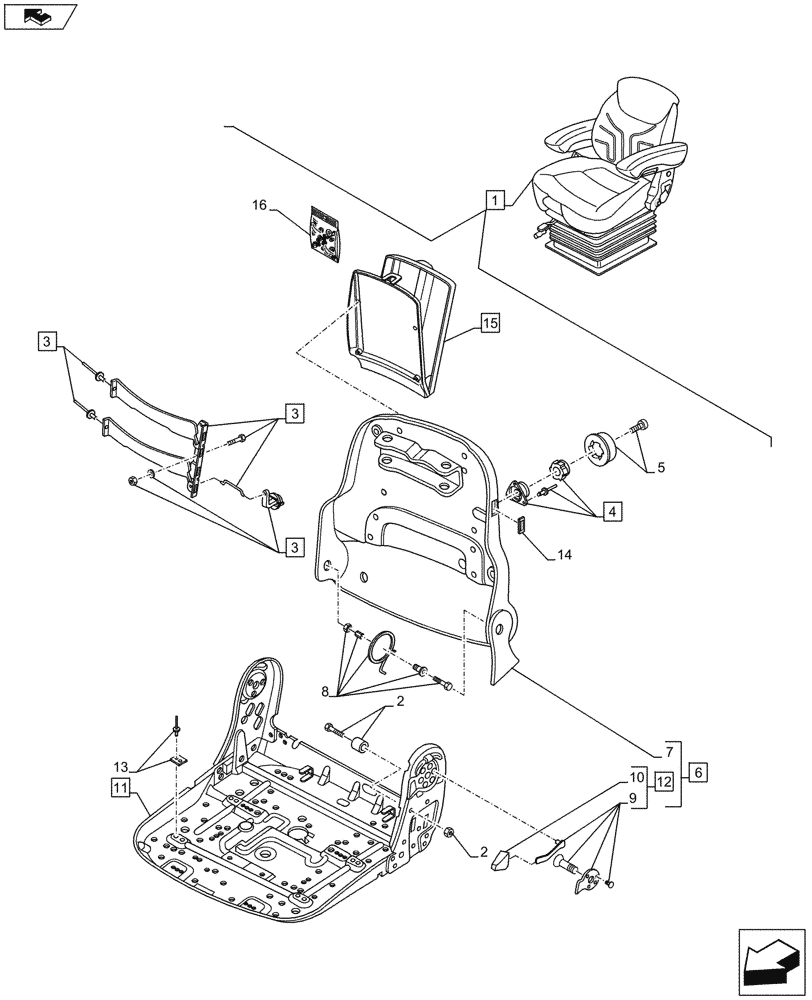

Запчасти Case IH FARMALL 115U (90.124.AE[09A]) - VAR - 333962 - DRIVER SEAT - SEAT, AIR SUSPENSION, PREMIUM - BEGIN YR 27-MAR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47476148

DRIVER SEAT

ASSY, Incl 2 - 16

1шт.

2

84280032

SCREW

1шт.

3

345767A1

SUPPORT

ASSY, Incl 4

1шт.

4

84191199

ACTUATOR

ASSY, Incl 5

1шт.

5

82034964

HANDLE

1шт.

6

84255306

KIT

ASSY, Incl 7, 12

1шт.

7

NSS

NOT SOLD SEPARAT

Backrest, Incl in 6

1шт.

8

84191131

SET OF PARTS

1шт.

9

NSS

NOT SOLD SEPARAT

Actuation, Incl in 12

1шт.

10

345752A1

HANDLE

1шт.

11

84191188

REPAIR KIT

ASSY, Incl 13

1шт.

12

84255307

ADAPTER

ASSY, Incl 9 - 10

1шт.

13

84191178

SET OF PARTS

1шт.

14

84223027

SWITCH

1шт.

15

71491415

UTILITY HOLDER

ASSY, Incl 16

1шт.

16

84247569

REPAIR KIT

Small Parts Literature Box

1шт.
