(90.124.AE[05]) - VAR - 332850 - DRIVER SEAT, SEAT, AIR SUSPENSION, DELUXE

Запчасти Case IH FARMALL 115U (90.124.AE[05]) - VAR - 332850 - DRIVER SEAT, SEAT, AIR SUSPENSION, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS

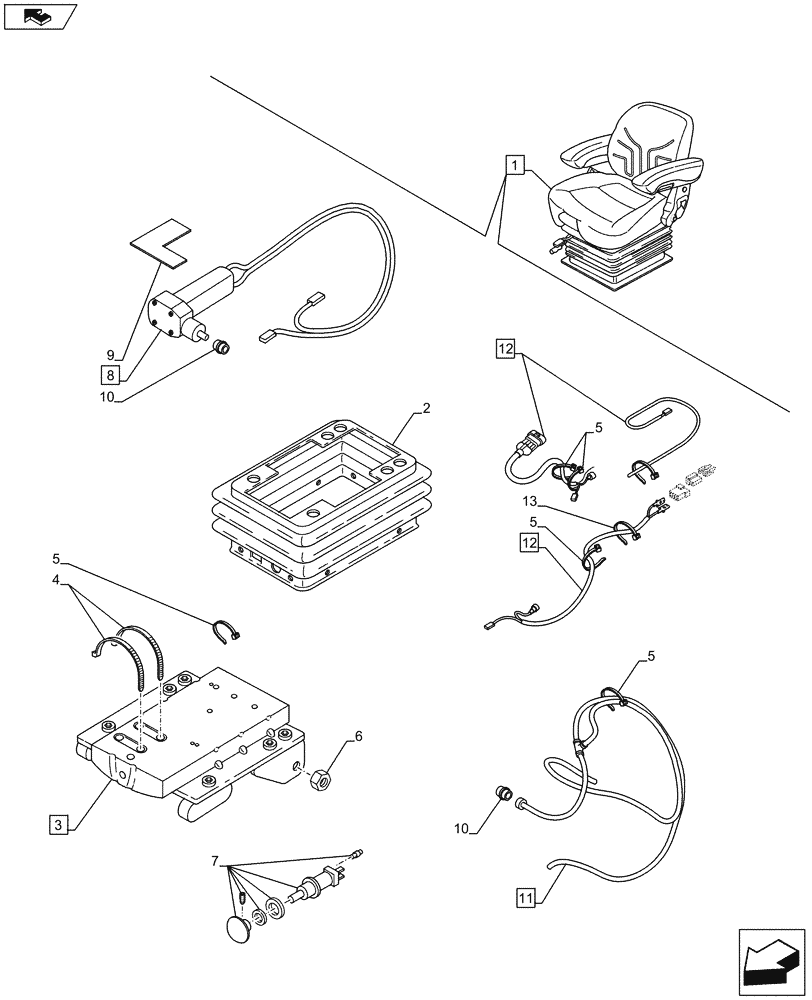

Схема запчастей Case IH FARMALL 115U - (90.124.AE[05]) - VAR - 332850 - DRIVER SEAT, SEAT, AIR SUSPENSION, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
8
12
11
13
4
5
7
5
5
5
9
6
10
12
3
2
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84468817

DRIVER SEAT

ASSY, Incl 2 - 13, Years: -24-MAR-13

1шт.

1

47476146

DRIVER SEAT

ASSY, Incl 2 - 13, Start Year: 25-MAR-13

1шт.

2

82035104

BELLOWS

1шт.

3

9971516

MOUNTING PLATE

ASSY, Incl 4 - 6

1шт.

4

84171410

WIRE CLAMP

2шт.

5

87567529

CABLE TIE,200mm L

1шт.

6

82034883

NUT,CL 8.8

2шт.

7

87705191

KIT

1шт.

8

87331939

AIR COMPRESSOR KIT

ASSY, Incl 4, 5, 9, 10 (Qty 2)

1шт.

9

84171558

PLATE

1шт.

10

87331945

FERRULE

4шт.

11

87705194

HOSE KIT

ASSY, Incl 5, 10 (Qty 2)

1шт.

12

9971521

KIT

ASSY, Incl 5

1шт.

13

82035055

CABLE TIE,M4.7 x 204

1шт.
