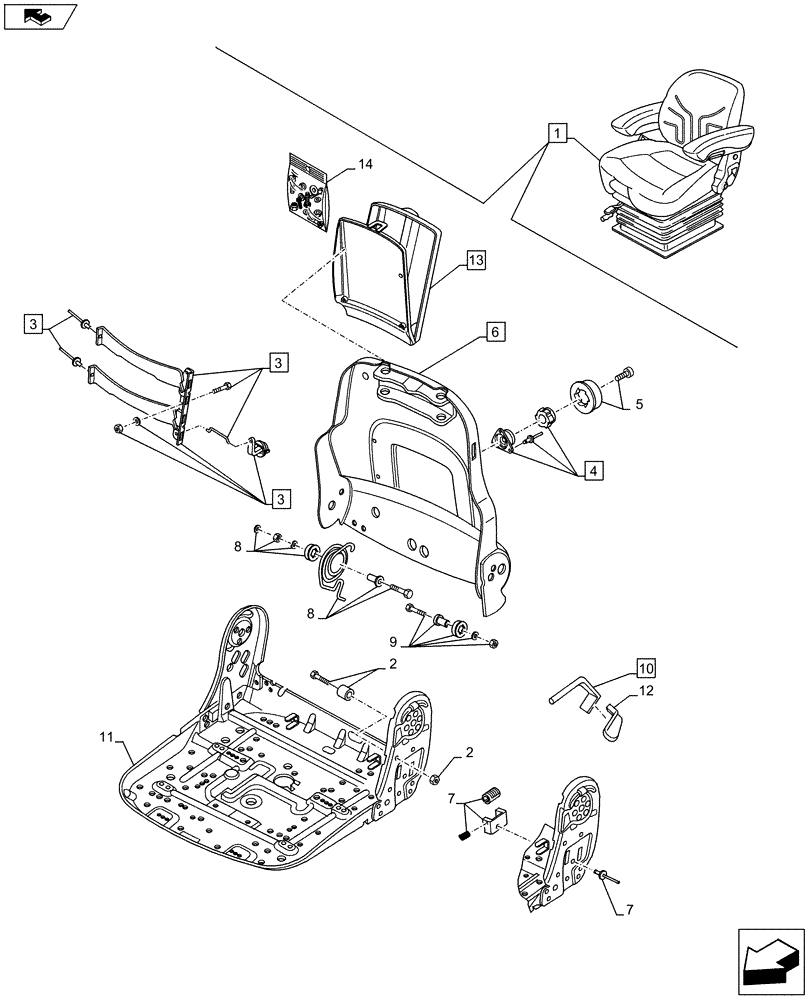

Запчасти Case IH FARMALL 115U (90.124.AE[03]) - VAR - 332850 - DRIVER SEAT, SEAT, AIR SUSPENSION, DELUXE - END YR 23-APR-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84468817

DRIVER SEAT

ASSY, Incl 2 - 14

1шт.

2

84255312

KIT

1шт.

3

347567A1

SHIELD

ASSY, Incl 4

1шт.

4

84191199

ACTUATOR

ASSY, Incl 5

1шт.

5

82034964

HANDLE

1шт.

6

84191121

BACKREST

ASSY, Incl 8, 9

1шт.

7

82034946

SERVICE KIT

1шт.

8

84191131

SET OF PARTS

1шт.

9

84191196

SET OF PARTS

1шт.

10

82034960

LEVER

ASSY, Incl 12

1шт.

11

NSS

NOT SOLD SEPARAT

Seat Pan, Incl in 1

1шт.

12

82034950

HANDLE

1шт.

13

71491415

UTILITY HOLDER

ASSY, Incl 14

1шт.

14

84247569

REPAIR KIT

Small Parts Literature Box

1шт.
