Запчасти Case IH FARMALL 115U (90.120.BB[02]) - STD + VAR - 391962 - DRIVER SEAT, SEAT, MECHANICAL SUSPENSION, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

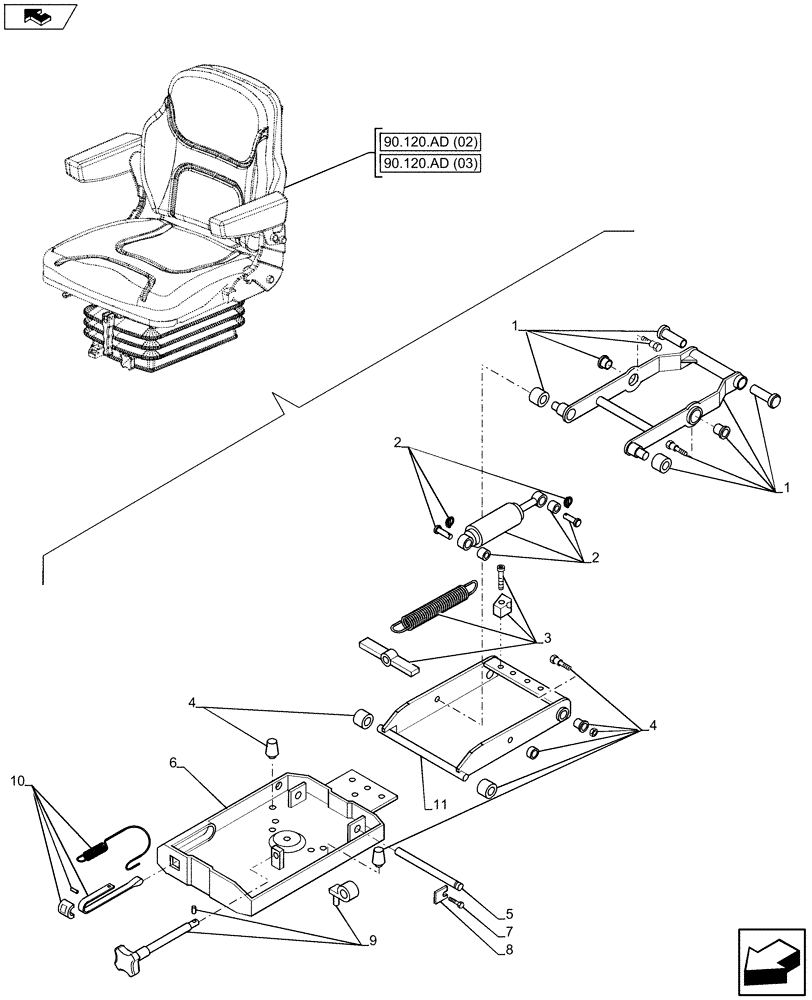

Схема запчастей Case IH FARMALL 115U - (90.120.BB[02]) - STD + VAR - 391962 - DRIVER SEAT, SEAT, MECHANICAL SUSPENSION, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
4
1
10
5
6
2
7
3
8
9
1
2
4
11
90.120.ad (02)
90.120.ad (03)

Артикул

Название

Примечание

Количество

1

47388497

KIT

Scissor Roller

1шт.

2

47388487

KIT

Shock Absorber

1шт.

3

47388076

KIT

Springs

1шт.

4

47388486

KIT

Rubbers Bump Stop

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Incl in Seat Assy

1шт.

6

NSS

NOT SOLD SEPARAT

Support, Incl in Seat Assy

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Incl in Seat Assy

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in Seat Assy

1шт.

9

47387994

KIT

Height Adjustment Lever

1шт.

10

47382403

KIT

Weight Indicator

1шт.

11

NSS

NOT SOLD SEPARAT

Support, Incl in Seat Assy

1шт.

Выбрано товаров: 11
