Запчасти Case IH FARMALL 115U (90.120.AD[02]) - STD + VAR - 391962 - DRIVER SEAT - SEAT, MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

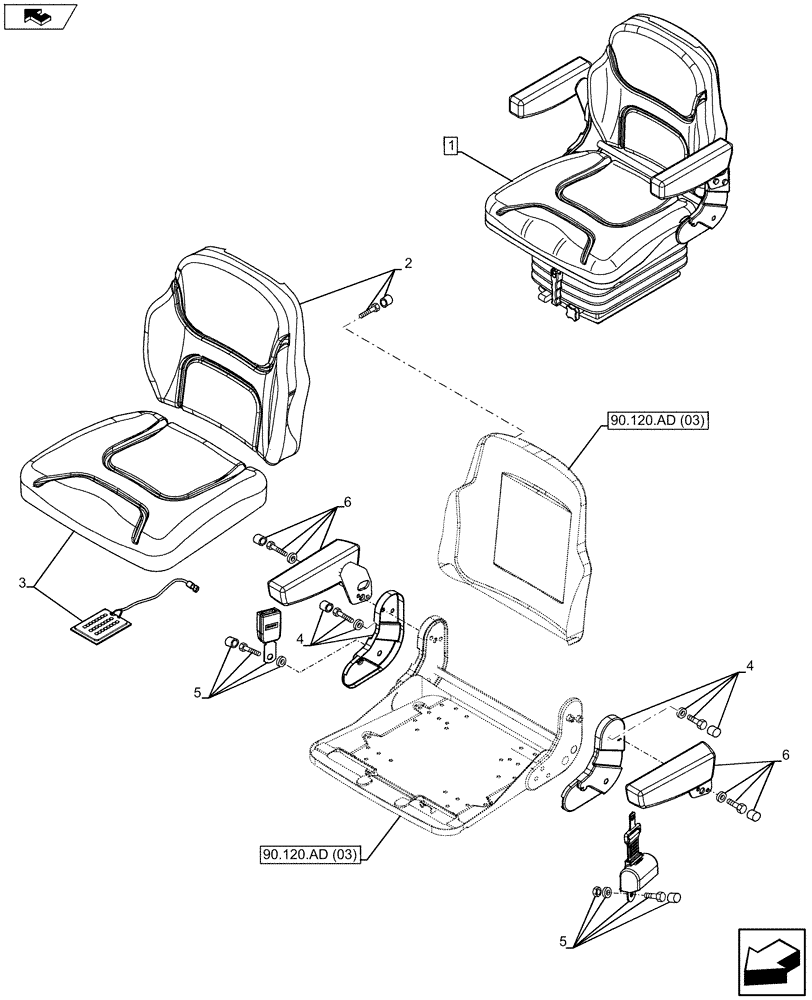

Схема запчастей Case IH FARMALL 115U - (90.120.AD[02]) - STD + VAR - 391962 - DRIVER SEAT - SEAT, MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
2
5
5
4
6
1
4
6
3
90.120.ad (03)
90.120.ad (03)

Артикул

Название

Примечание

Количество

1

84347511

DRIVER SEAT

Assy, Incl 2 - 6

1шт.

Includes Also 90.120.AD (03) and 90.120.BB

1шт.

2

84352163

BACKREST

1шт.

3

84352165

SEAT CUSHION

1шт.

Includes Operator's Presence Sensor (DOPS)

1шт.

4

47388032

KIT

Armrest Covers & Hardware

1шт.

5

84361127

SEAT BELT,73.5mm W x 1120mm L

L=1120mm

1шт.

5

84361200

SEAT BELT,51mm W x 1470mm L

L=1470mm

1шт.

6

84424659

KIT

RH and LH Armrests with Hardware

1шт.

Выбрано товаров: 9
