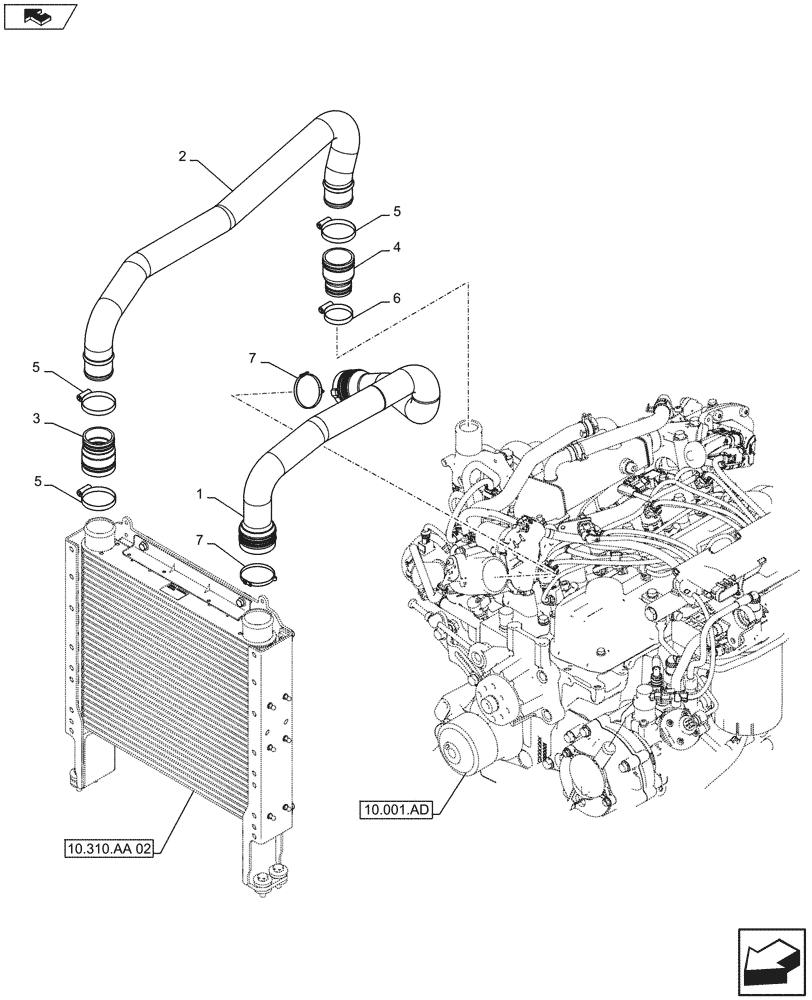

Запчасти Case IH FARMALL 115U (10.310.AB[02]) - VAR - 332229, 336816 - INTERCOOLER LINE, ISO (10) - ENGINE

1

84279590

PIPE

Pressure, Intercooler to Engine, Cold

1шт.

2

84289585

PIPE

CAC, Intercooler to Engine, Hot, Serial Range: -C7186

1шт.

2

47364709

TUBE

Intercooler to Engine, Hot, Start Serial: D7186

1шт.

3

84289596

SLEEVE CYLINDER

1шт.

4

84289600

SLEEVE CYLINDER,38.5mm ID x 57mm OD x 72mm L

1шт.

5

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

, Serial Range: -C7186

2шт.

5

82036462

CLAMP,50mm - 70mm

, Start Serial: D7186

3шт.

6

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

, Serial Range: -C7186

1шт.

6

82039348

HOSE CLAMP,40mm - 60mm

, Start Serial: D7186

1шт.

7

87644003

HOSE CLIP,62-70mm

2шт.
