Запчасти Case IH FARMALL 115U (90.118.BM[03]) - VAR - 330879 - TELESCOPIC EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

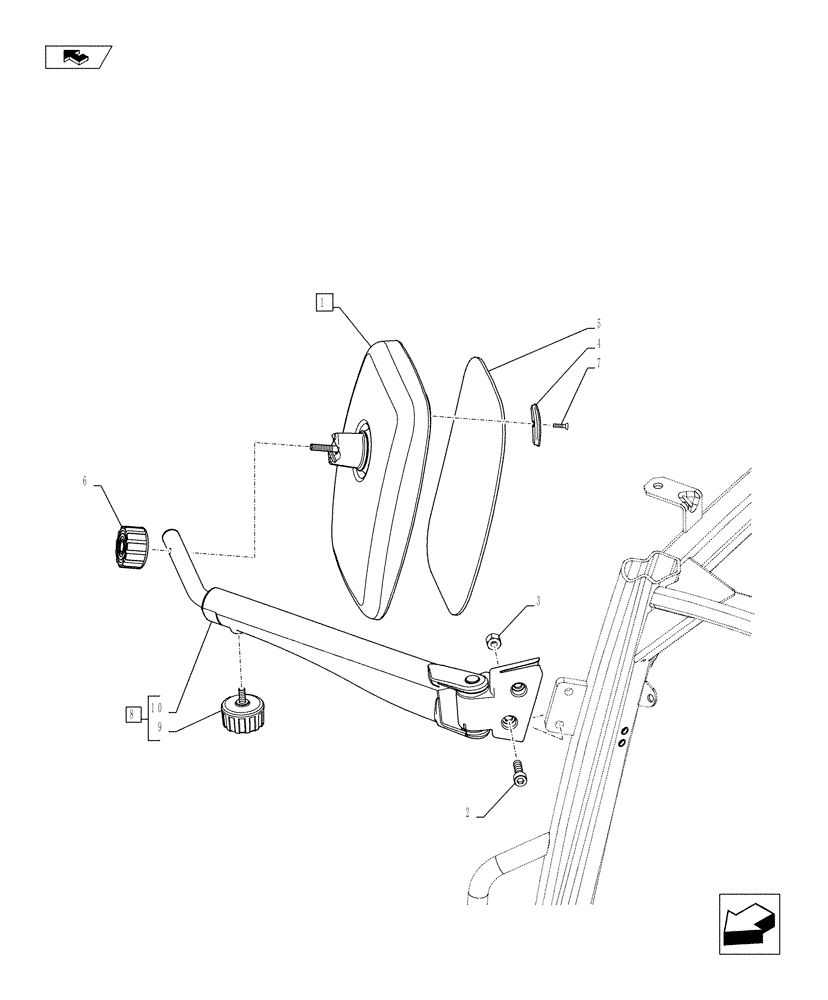

Схема запчастей Case IH FARMALL 115U - (90.118.BM[03]) - VAR - 330879 - TELESCOPIC EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
9
8
5
1
2
3
6
4
7
10

Артикул

Название

Примечание

Количество

1

87339177

MIRROR ASSY.

ASSY, Incl 4 - 7

2шт.

2

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

4

87531094

BRACKET

4шт.

5

82035218

MIRROR,300mm x 200mm

1шт.

6

82016257

KNOB

1шт.

7

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

8

87314381

MIRROR ARM

ASSY, LH, Incl 9 (Qty 1), 10 (Qty 1)

1шт.

8

84398575

MIRROR ARM

ASSY, RH, Incl 9 (Qty 1), 10 (Qty 1)

1шт.

9

87365131

KNOB

2шт.

10

NSS

NOT SOLD SEPARAT

Telescopic Arm, Incl in 8

2шт.

Выбрано товаров: 11
