Запчасти Case IH FARMALL 115U (90.118.BM[01]) - STD + VAR - 392878 - FIXED EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

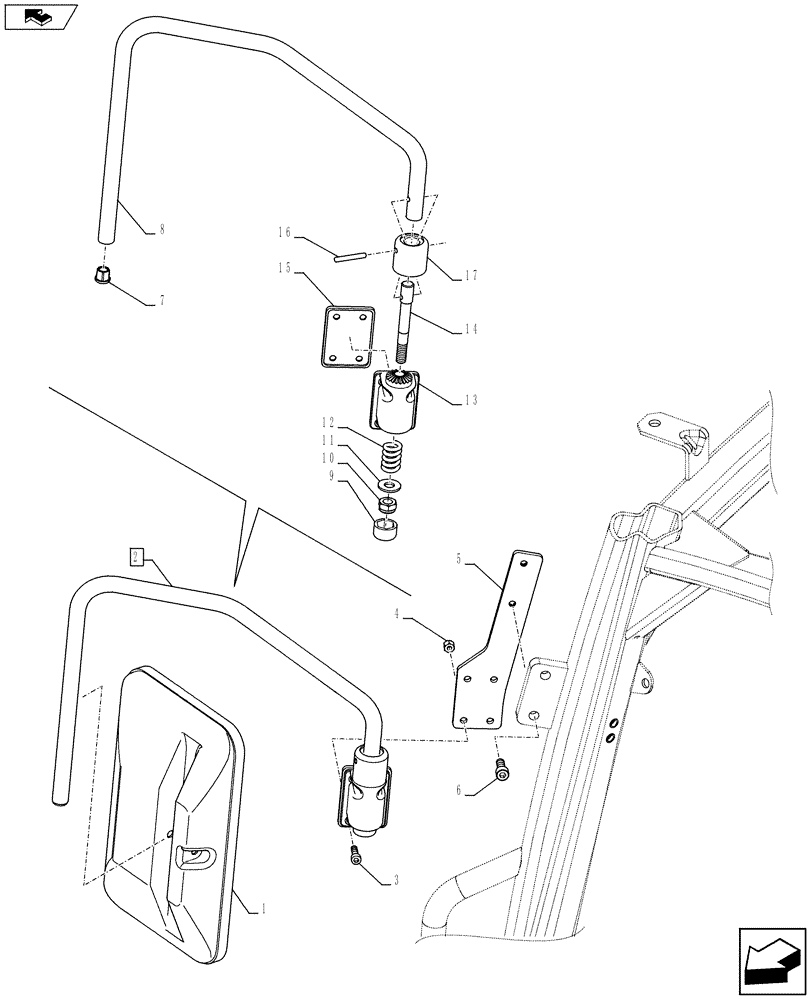

Схема запчастей Case IH FARMALL 115U - (90.118.BM[01]) - STD + VAR - 392878 - FIXED EXTERNAL REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
10
16
6
2
15
11
1
13
8
3
12
5
9
4
14
17
7

Артикул

Название

Примечание

Количество

1

5091914

REAR VIEW MIRROR

2шт.

2

84223825

MIRROR ARM

ASSY, Incl 7 - 17

2шт.

3

14305331

HEX SOC SCREW,M6 x 20mm, Cl 10.9, Full Thd

8шт.

4

12574211

NUT,M6 x 1, Cl 8

8шт.

5

84496235

BRACKET

2шт.

6

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

, Years: -23-JUN-14

4шт.

6

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

, Start Year: 24-JUN-14

4шт.

7

5080326

PLUG

2шт.

8

NSS

NOT SOLD SEPARAT

Arm, Incl in 2

2шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

10

NSS

NOT SOLD SEPARAT

Nut, Incl in 2

2шт.

11

NSS

NOT SOLD SEPARAT

Washer, Incl in 2

2шт.

12

5080324

SPRING

2шт.

13

NSS

NOT SOLD SEPARAT

Bracket, Incl in 2

2шт.

14

5080235

ANCHOR,Mirror

2шт.

15

NSS

NOT SOLD SEPARAT

Gasket, Incl in 2

2шт.

16

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

2шт.

17

NSS

NOT SOLD SEPARAT

Bracket, Incl in 2

2шт.

Выбрано товаров: 18
