(90.116.AC[08A]) - VAR - 331870 - REAR FENDER, PROTECTION FOR SWITCH - BEGIN YR 03-JAN-2015

Запчасти Case IH FARMALL 115U (90.116.AC[08A]) - VAR - 331870 - REAR FENDER, PROTECTION FOR SWITCH - BEGIN YR 03-JAN-2015 (90) - PLATFORM, CAB, BODYWORK AND DECALS

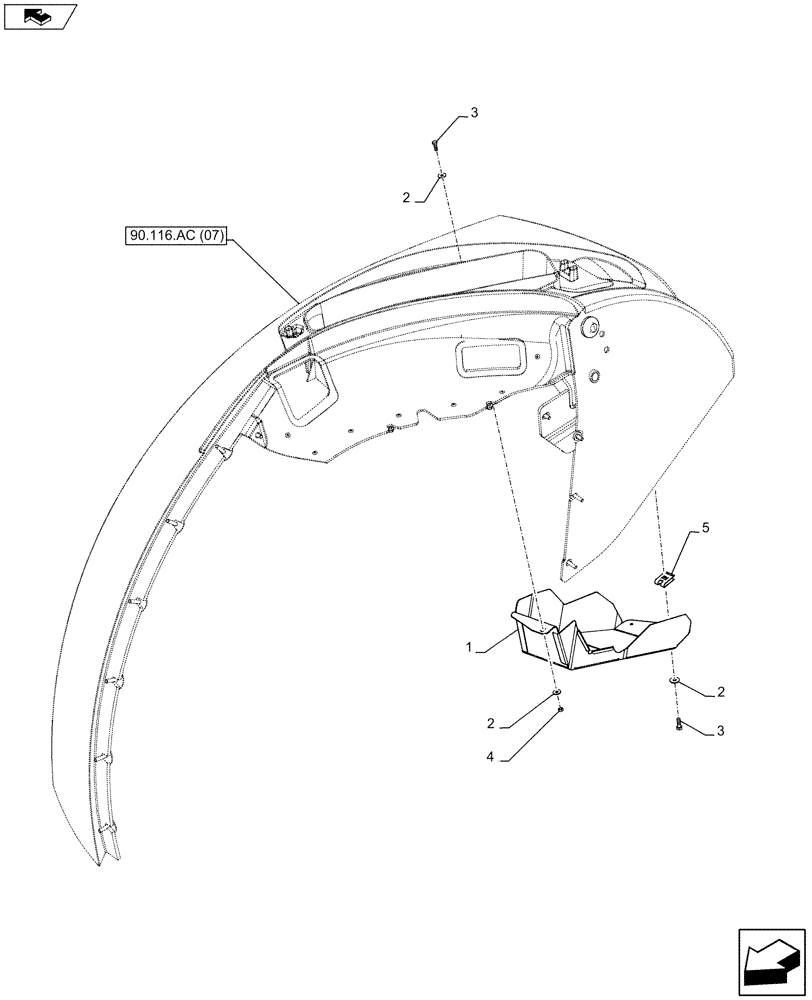

Схема запчастей Case IH FARMALL 115U - (90.116.AC[08A]) - VAR - 331870 - REAR FENDER, PROTECTION FOR SWITCH - BEGIN YR 03-JAN-2015 (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
2
1
4
5
3
2
3
2
90.116.ac (07)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47632366

BRACKET

LH

1шт.

1

47632380

BRACKET

RH

1шт.

2

13577701

WASHER,5.15mm ID x 15mm OD x 1.2mm Thk

8шт.

3

10977834

BOLT,Hex, M5 x 16mm, Cl 10.9, Full Thd

6шт.

4

86509265

NUT,M5, Cl 10

2шт.

5

14371071

SPRING NUT,M5, 12mm W x 20.3mm OAL

4шт.
