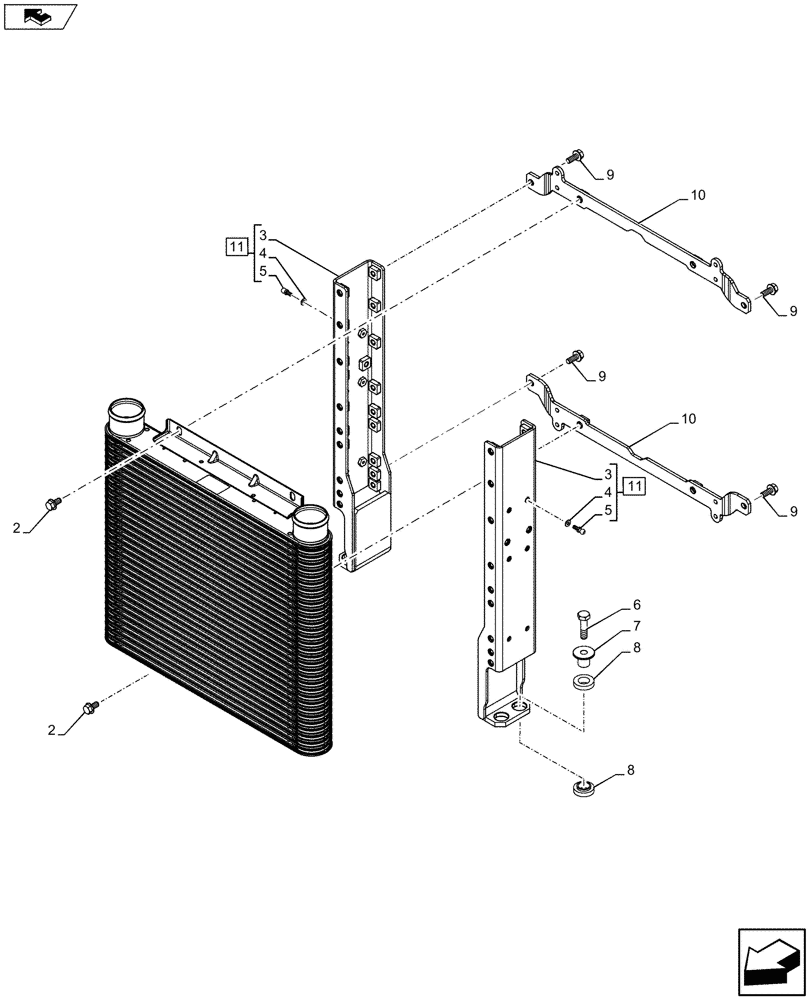

Запчасти Case IH FARMALL 115U (10.310.AA[02]) - VAR - 332229, 336816 - INTERCOOLER , ISO (10) - ENGINE

1

87735935

INTERCOOLER

32 Plates

1шт.

2

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

3

84370143

SUPPORT

2шт.

4

12637801

WASHER,5.15mm ID x 11mm OD x 1mm Thk

12шт.

5

84193371

STUD,M5

12шт.

6

11307021

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

4шт.

7

84370147

SPACER,10.4mm ID x 34mm OD x 22.8mm L

4шт.

8

4952241

PAD

8шт.

9

16287134

FLANGE BOLT,Hex, M8 x 20mm, Cl 10.9

4шт.

10

84361197

BRACKET

2шт.

11

47420963

SUPPORT

ASSY, Side, Incl 3 - 5

2шт.
