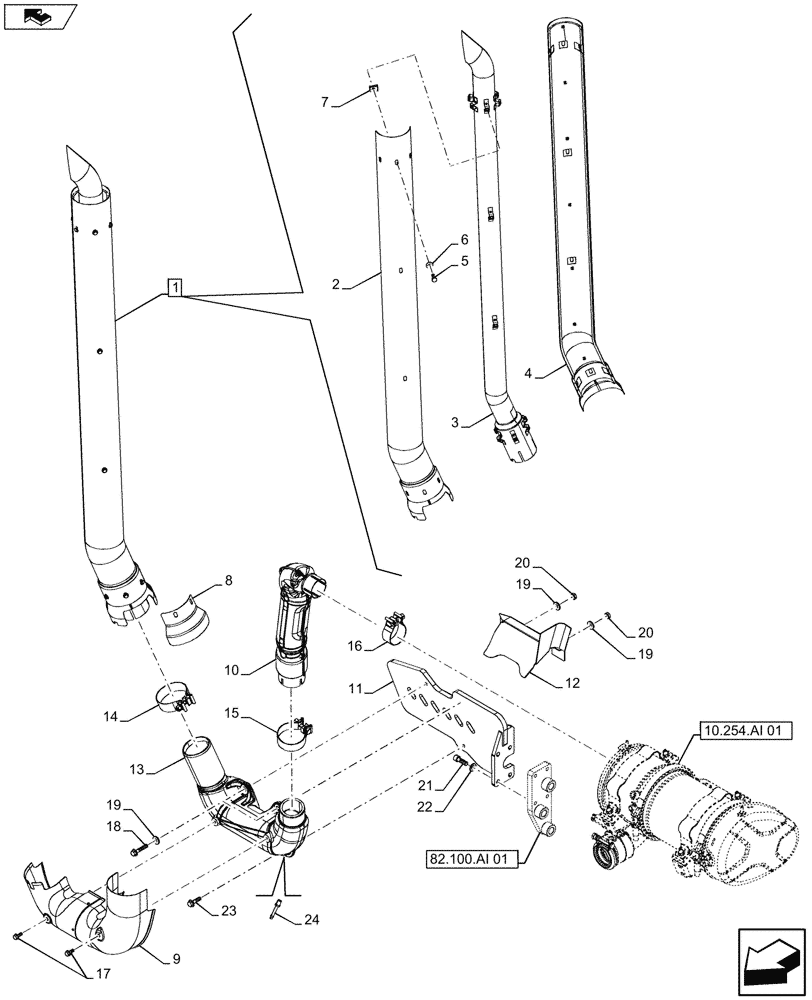

Запчасти Case IH FARMALL 115U (10.254.AD) - STD + VAR - 390446 - EXHAUST SYSTEM PIPE (10) - ENGINE

1

84556629

EXTENSION

ASSY, Incl 2 - 7, Years: -15-OCT-14

1шт.

1

47658810

EXHAUST SYSTEM PIPE

ASSY, Incl 2 - 7, Start Year: 16-OCT-14

1шт.

2

47658293

HEAT SHIELD

Front

1шт.

3

47658236

EXHAUST SYSTEM PIPE

1шт.

4

47658805

HEAT SHIELD

Rear

1шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

16шт.

6

11194671

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

16шт.

7

14189071

SPRING NUT,M6

16шт.

8

47416318

SHIELD

, Years: -15-OCT-14

1шт.

8

47658826

HEAT SHIELD

, Start Year: 16-OCT-14

1шт.

9

47398005

HEAT SHIELD

A-Pillar

1шт.

10

84573342

EXHAUST SYSTEM PIPE

Lower Bend

1шт.

11

84571222

SUPPORT

1шт.

12

47406867

BRACKET

1шт.

13

84496833

PILLAR

A-Pillar, U-Bend

1шт.

14

84499088

COLLAR CLAMP

1шт.

15

84499087

CLAMP,81.1mm

1шт.

16

84499086

CLAMP,64.9mm

1шт.

17

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

2шт.

18

16288934

FLANGE BOLT,Hex, M10 x 1.25 x 50mm, Cl 10.9

2шт.

19

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

20

10791014

NUT,M10 x 1.25, Cl 04

2шт.

21

84571678

HEX SOC SCREW

4шт.

22

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

23

16288624

FLANGE BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

24

768717

FITTING,1/4" Hose X 1/8" NPTF Beaded

1шт.
