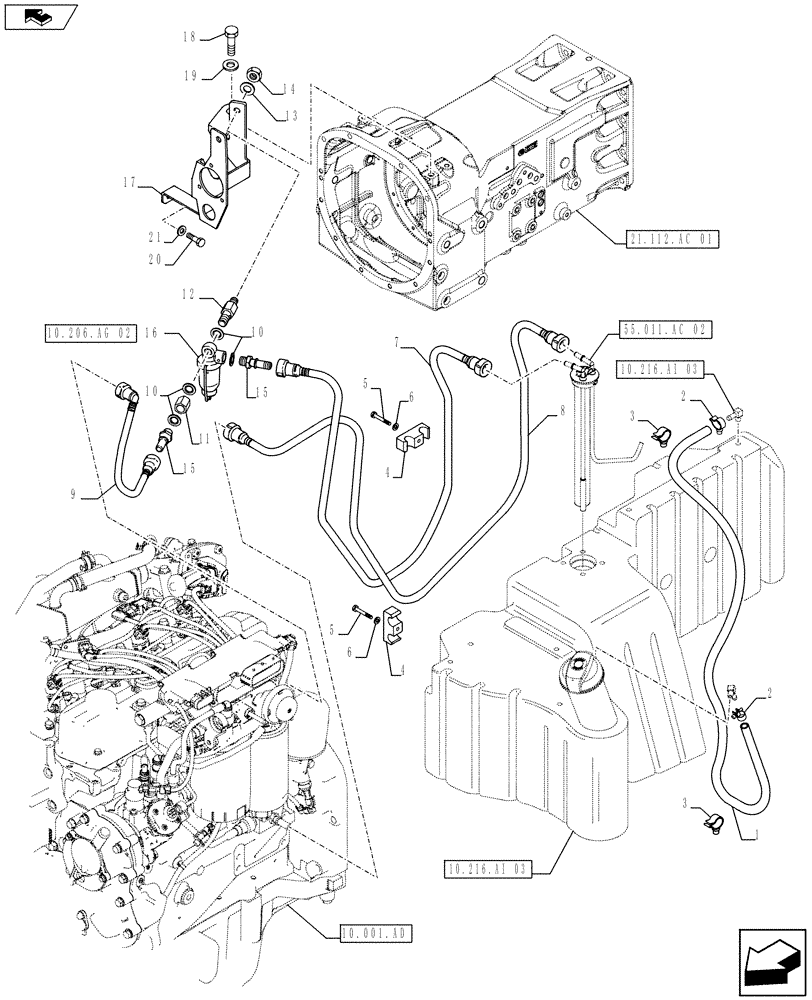

Запчасти Case IH FARMALL 115U (10.216.BA[02]) - VAR - 330133 - FUEL LINES, ISO (10) - ENGINE

1

84480591

FUEL TUBE

Send Tube of Combustible, L=1390mm

1шт.

2

10186590

CLAMP,11mm - 13mm

2шт.

3

14631387

CLAMP

15mm x 15mm

2шт.

4

87745377

BRACKET

2шт.

5

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

7

84593232

TUBE

Tank to Fuel Filter, Send Tube of Combustible

1шт.

8

84593234

TUBE

Bearing

1шт.

9

84473049

FUEL TUBE

Fuel Filter to Engine, Send Tube of Combustible

1шт.

10

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

4шт.

11

84364450

FLANGE NUT,Hex, M14 x 1.5, 22.5 Thd

1шт.

12

84364449

ADAPTER,M14 x 1.5mm / M12 x 1.25mm, 69.5mm Length

1шт.

13

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

1шт.

14

12164924

NUT,Hex, M12 x 1.25 x 12mm H, Cl 10

1шт.

15

84423906

PIPE FITTING,M14 x 1.5mm / 11.8mm OD

2шт.

16

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

1шт.

17

84526159

BRACKET

1шт.

18

86637972

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

19

12646904

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

20

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

21

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.
