Запчасти Case IH FARMALL 115U (88.035.AA[06]) - DIA KIT - 3RD REMOTE NOT CONFIGURABLE DETENT - 2 COUPLE DE LUXE (88) - ACCESSORIES

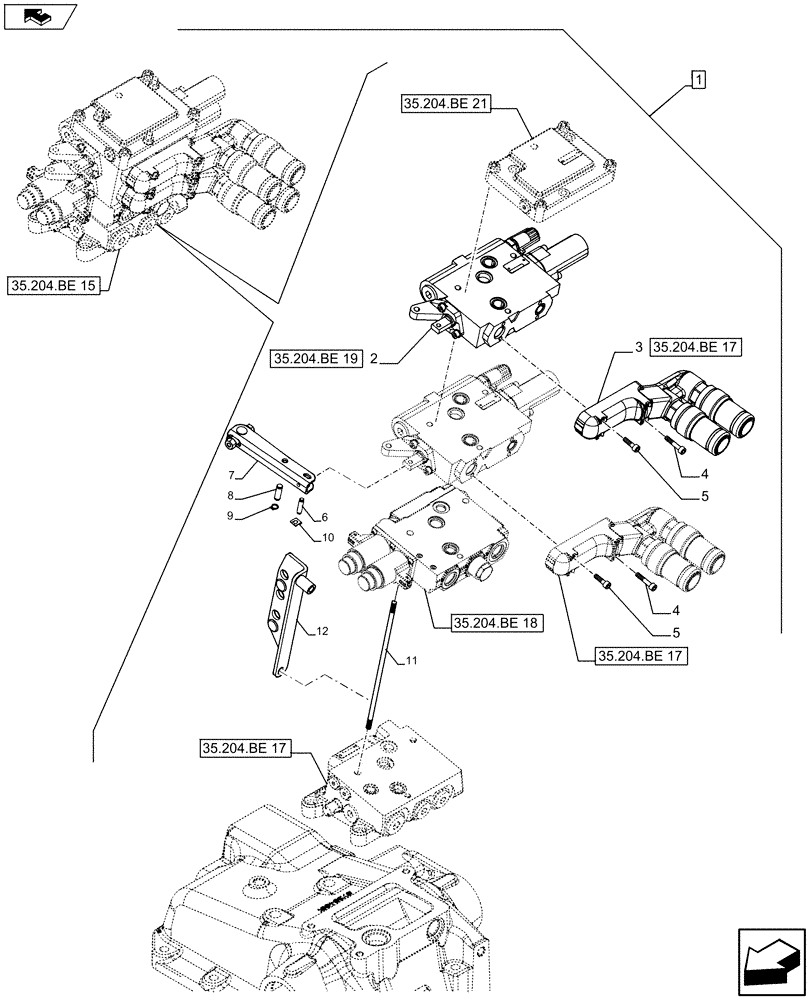

Схема запчастей Case IH FARMALL 115U - (88.035.AA[06]) - DIA KIT - 3RD REMOTE NOT CONFIGURABLE DETENT - 2 COUPLE DE LUXE (88) - ACCESSORIES
35.204.be 18
10
4
6
8
1
2
12
7
11
5
5
9
3
4
35.204.be 17
35.204.be 17
35.204.be 17
home
35.204.be 15
35.204.be 21
35.204.be 19

Артикул

Название

Примечание

Количество

1

718193051

DIA KIT, TRACTOR

3RD Remote Not Configurable Detent - 2 Coupler deluxe, Incl 2 - 12

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See also fig. 88.035.AA 05, 88.035.AA 07, 88.035.AA 08

1шт.

2

87546169

CONTROL VALVE

1шт.

2

87546169R

REMAN-HYD VALVE

1шт.

2

87546169C

CORE-VALVE HYD

Return Number

1шт.

3

87381964

QUICK MALE COUPLING

1шт.

4

47129475

HEX SOC SCREW,M6 x 50mm

2шт.

5

47129474

HEX SOC SCREW,M6 x 35mm

2шт.

6

11063971

SPRING CLIP,M6

4шт.

7

84384199

LEVER

2шт.

8

5113008

PIN,8mm OD x 26mm L

2шт.

9

11065676

SNAP RING,M8, Ext

4шт.

10

5193177

PIN,6mm OD x 29.48mm L

2шт.

11

47123183

STUD,M8

3шт.

12

84487874

BRACKET

1шт.

Выбрано товаров: 16
