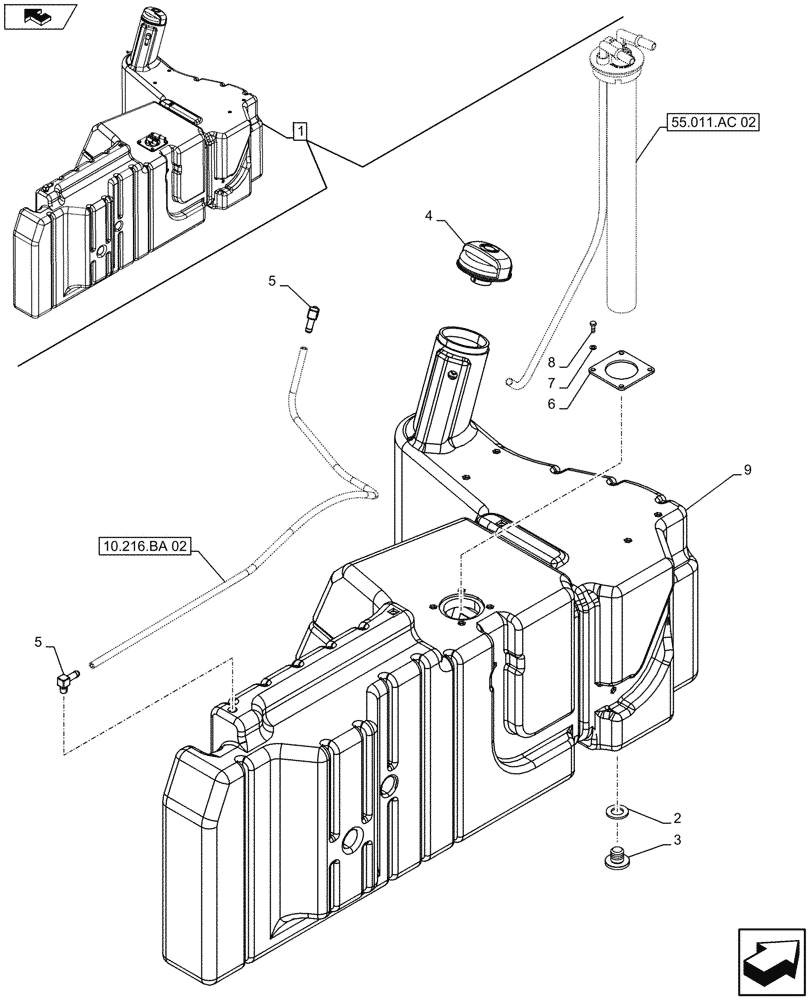

Запчасти Case IH FARMALL 115U (10.216.AI[03]) - VAR - 330133 - FUEL TANK, ISO (10) - ENGINE

1

84398607

FUEL TANK

ASSY, 142 Liters, Incl 2 - 9

1шт.

See Tank Components also in Figures 55.011.AC 02

1шт.

2

5093981

SEAL,23mm ID x 41mm OD x 3.8mm Thk

1шт.

3

5094121

PLUG,Hex socket, M24 x 1

1шт.

4

87610994

CAP,103mm OD x 69.7mm Thk

1шт.

5

5179322

90 ELBOW

2шт.

6

87341216

PLATE

1шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

8

10902334

BOLT,Hex, M6 x 18mm, Cl 10.9, Full Thd

4шт.

9

NSS

NOT SOLD SEPARAT

Tank, Incl in 1

1шт.
