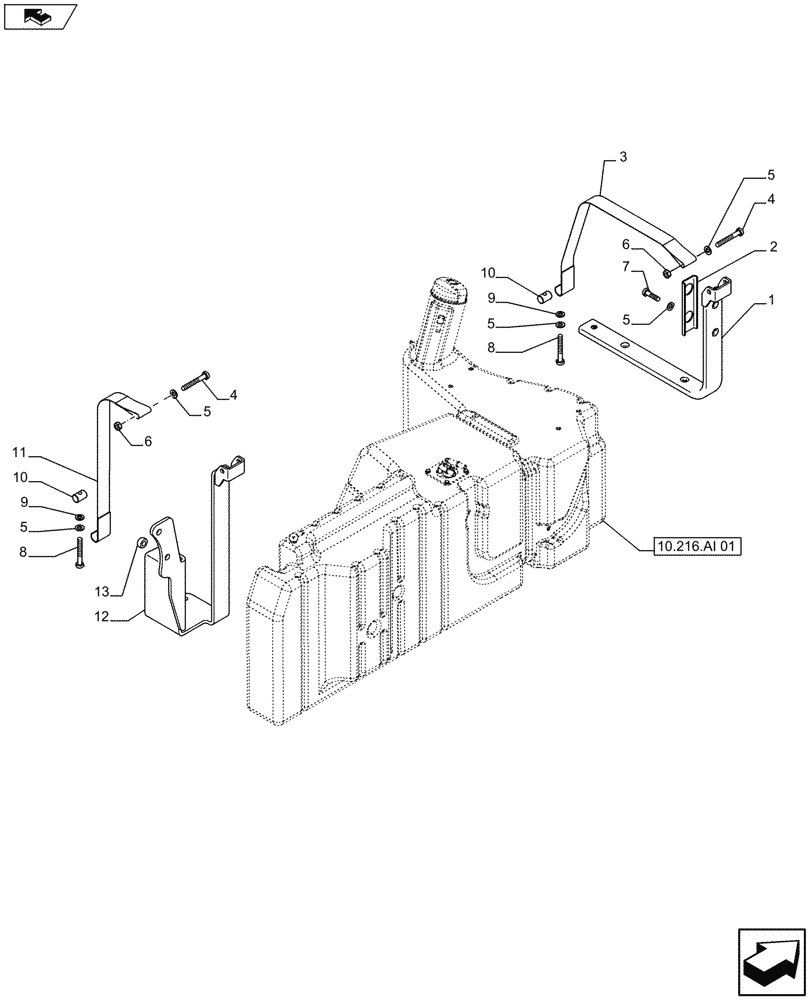

Запчасти Case IH FARMALL 115U (10.216.AI[02]) - STD + VAR - 390210 - FUEL TANK, SUPPORT (10) - ENGINE

1

84351184

SUPPORT

Front, Lower

1шт.

2

84256988

SUPPORT

1шт.

3

84354662

BRACKET

Front, Upper

1шт.

4

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

2шт.

5

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

6

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

7

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

8

15232224

BOLT,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

9

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

10

5184438

PIN

2шт.

11

84351384

WEATHERSTRIP

Rear, Upper

1шт.

12

84519799

SUPPORT

Rear, Lower

1шт.

13

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

2шт.

14

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

4шт.

15

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.
