(55.518.AT[02A]) - VAR - 330642 - WINDSHIELD WASH RESERVOIR, REAR - BEGIN YR 10-JUN-2013

Запчасти Case IH FARMALL 115U (55.518.AT[02A]) - VAR - 330642 - WINDSHIELD WASH RESERVOIR, REAR - BEGIN YR 10-JUN-2013 (55) - ELECTRICAL SYSTEMS

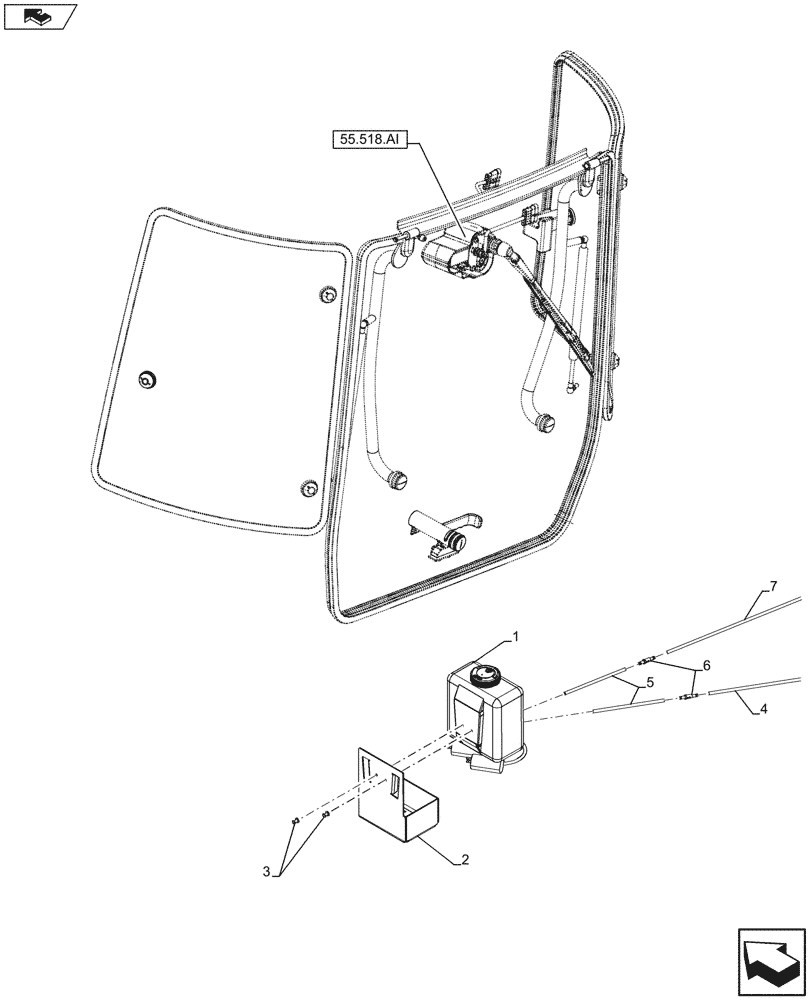

Схема запчастей Case IH FARMALL 115U - (55.518.AT[02A]) - VAR - 330642 - WINDSHIELD WASH RESERVOIR, REAR - BEGIN YR 10-JUN-2013 (55) - ELECTRICAL SYSTEMS
55.518.ai
2
1
home
3
6
7
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84605277

TANK

Pumps on Bottom are NSS from Tank Assy

1шт.

2

47483189

SUPPORT

1шт.

3

14642892

POP RIVET,Truss, M4.8 x 14

2шт.

4

84209225

HOSE,4mm ID x 3100mm L

1шт.

5

84209221

HOSE,4mm ID x 150mm L

Rear Wiper Hose

2шт.

6

5136113

VALVE

2шт.

7

84270726

FLEXIBLE HOSE,4mm ID x 2500 mm L

Rear Wiper Hose

1шт.
