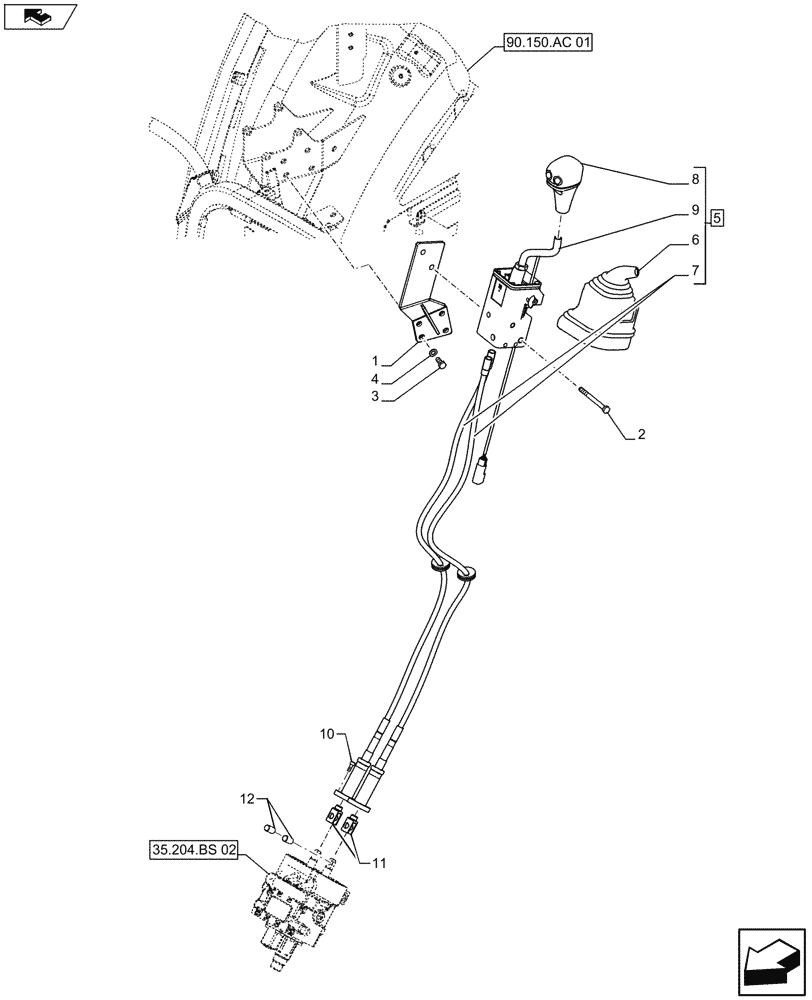

Запчасти Case IH FARMALL 115U (55.512.CL[01]) - VAR - 743919 - JOYSTICK MOUNTING, ISO - END YR 28-SEP-2013 (55) - ELECTRICAL SYSTEMS

1

84534720

BRACKET

1шт.

2

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

84486751

JOYSTICK

ASSY, Incl 6 - 9

1шт.

6

84370120

BOOT

1шт.

7

NSS

NOT SOLD SEPARAT

Cable, Incl in 5

2шт.

8

NSS

NOT SOLD SEPARAT

Knob, Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

Lever, Incl in 5

1шт.

10

14304621

SCREW,M5 x 14mm, Cl 8.8, Full Thd

4шт.

11

87303906

YOKE

2шт.

12

87332065

PIN,9mm OD x 17mm L

2шт.
