(55.404.BS[05]) - STD + VAR - 331714, 390713 - WORKING LIGHT, SUPPORT, WORKING LIGHT, ISO

Запчасти Case IH FARMALL 115U (55.404.BS[05]) - STD + VAR - 331714, 390713 - WORKING LIGHT, SUPPORT, WORKING LIGHT, ISO (55) - ELECTRICAL SYSTEMS

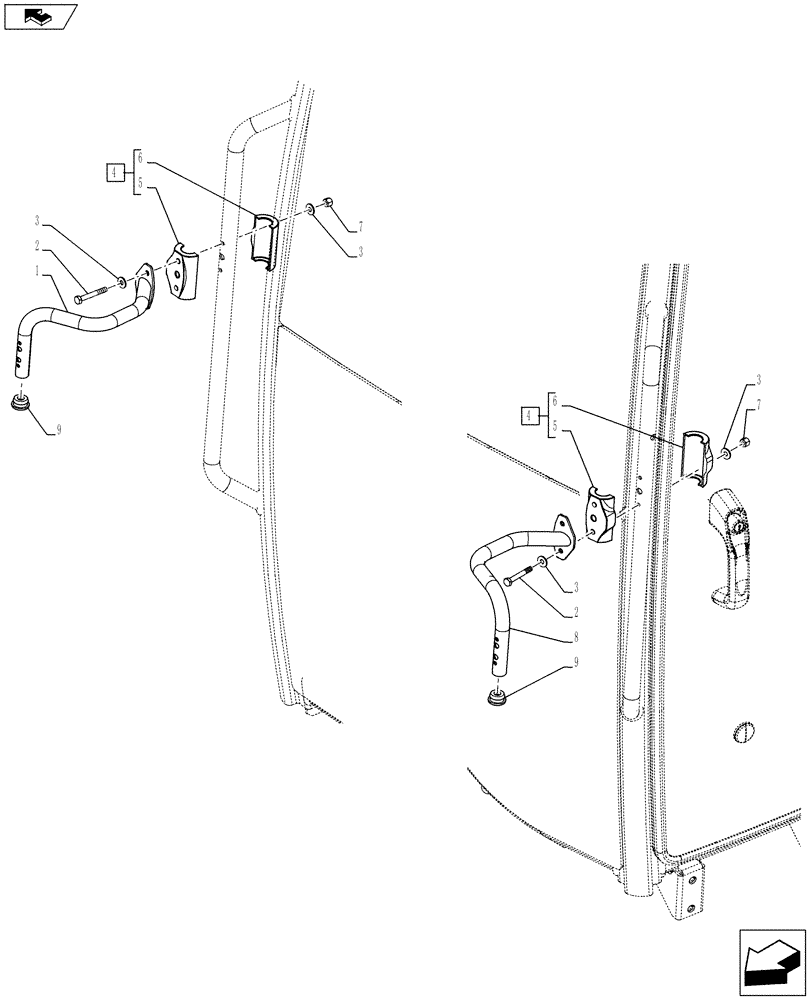

Схема запчастей Case IH FARMALL 115U - (55.404.BS[05]) - STD + VAR - 331714, 390713 - WORKING LIGHT, SUPPORT, WORKING LIGHT, ISO (55) - ELECTRICAL SYSTEMS
home
9
7
2
2
8
1
7
3
4
3
4
3
5
9
6
5
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84494628

SUPPORT

RH

1шт.

2

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

4шт.

3

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

8шт.

4

84512726

COVER

Incl 5, 6

2шт.

5

NSS

NOT SOLD SEPARAT

Cover, Incl in 4

1шт.

6

NSS

NOT SOLD SEPARAT

Cover, Incl in 4

1шт.

7

12574211

NUT,M6 x 1, Cl 8

4шт.

8

84494630

SUPPORT

LH

1шт.

9

5094071

PLUG

2шт.
