(55.404.BM[02]) - STD + VAR - 332717, 391713 - ROAD LIGHT, REAR, W/ CAB, NA

Запчасти Case IH FARMALL 115U (55.404.BM[02]) - STD + VAR - 332717, 391713 - ROAD LIGHT, REAR, W/ CAB, NA (55) - ELECTRICAL SYSTEMS

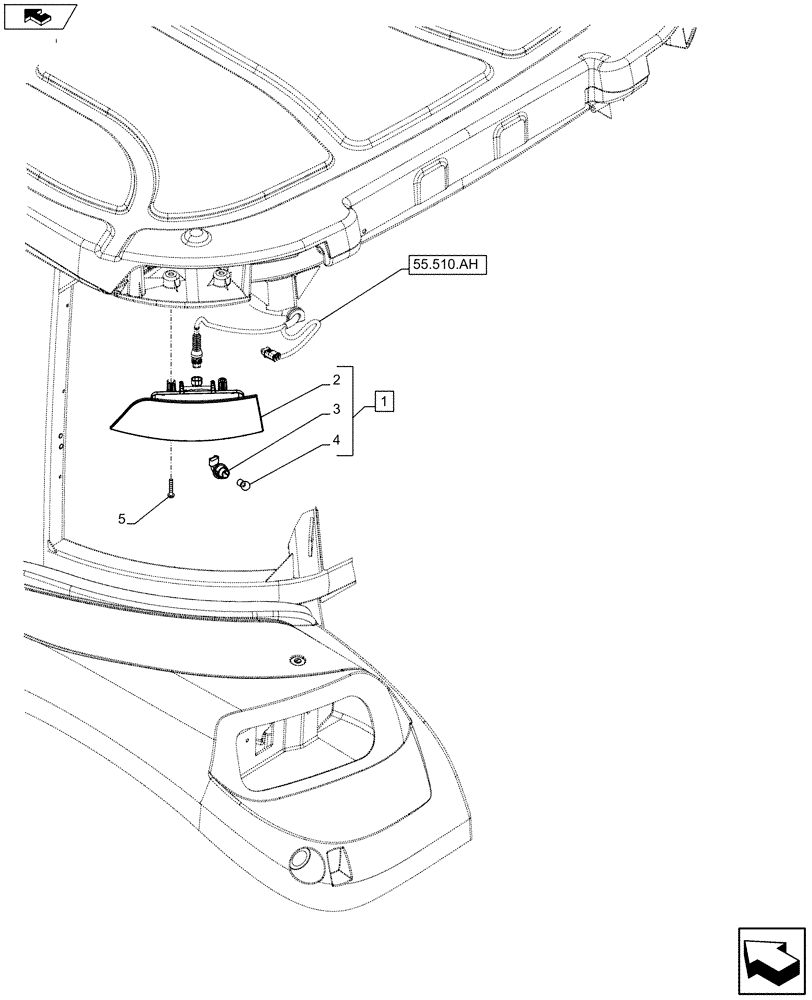

Схема запчастей Case IH FARMALL 115U - (55.404.BM[02]) - STD + VAR - 332717, 391713 - ROAD LIGHT, REAR, W/ CAB, NA (55) - ELECTRICAL SYSTEMS
55.510.ah
3
4
1
5
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Roof Rear RH, ASSY, Incl 2 - 4

1шт.

1

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Roof Rear LH, ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Lamp Housing, Incl in 1

1шт.

3

87304554

HOLDER

1шт.

4

529068

BULB,#1156, 12V, 21W

1шт.

5

84187820

SCREW,Torx Pan Hd, M6 x 35mm, Cl 8.8

4шт.
