(55.404.AP) - VAR - 335717, 336717 - WORK LAMP, GRAB RAIL, FRONT, ISO

Запчасти Case IH FARMALL 115U (55.404.AP) - VAR - 335717, 336717 - WORK LAMP, GRAB RAIL, FRONT, ISO (55) - ELECTRICAL SYSTEMS

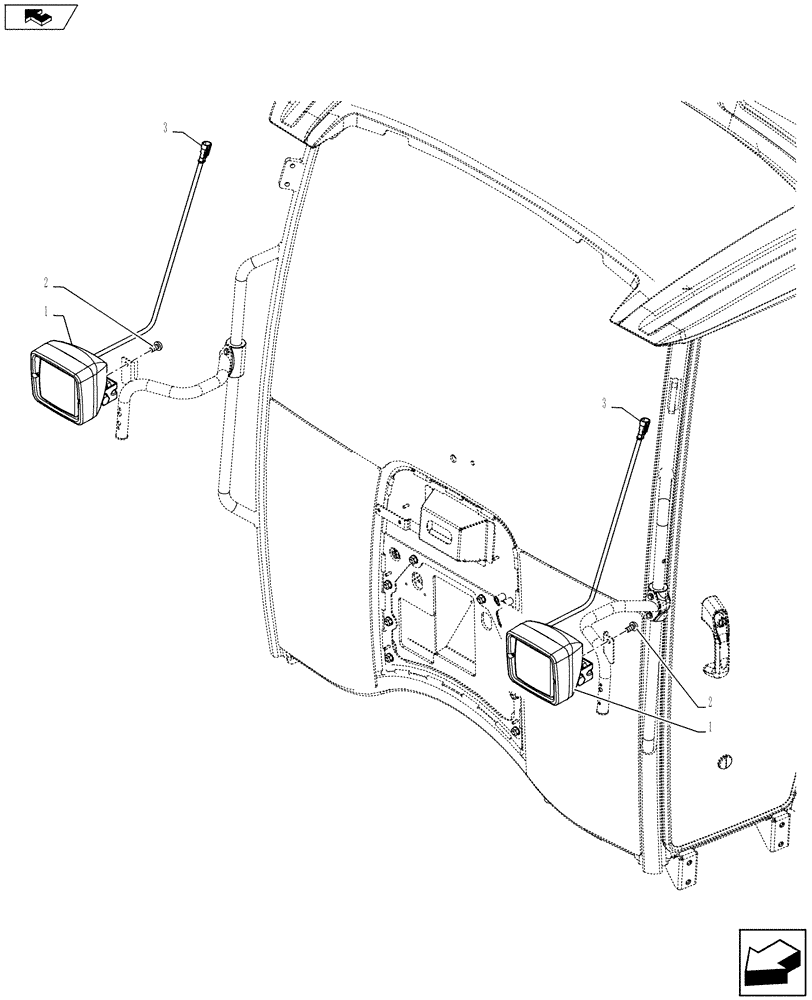

Схема запчастей Case IH FARMALL 115U - (55.404.AP) - VAR - 335717, 336717 - WORK LAMP, GRAB RAIL, FRONT, ISO (55) - ELECTRICAL SYSTEMS
home
2
2
1
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84526299

WORK LAMP

Pedestal Square Flood

2шт.

2

84270866

SCREW,Torx Pan Hd, M10 x 16mm, Cl 4.8

2шт.

3

84122357

ELEC CONNECTOR

Connector, Wire, DT Series 2W TAB HSG

2шт.
