Запчасти Case IH FARMALL 115U (05.100.04[03]) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE

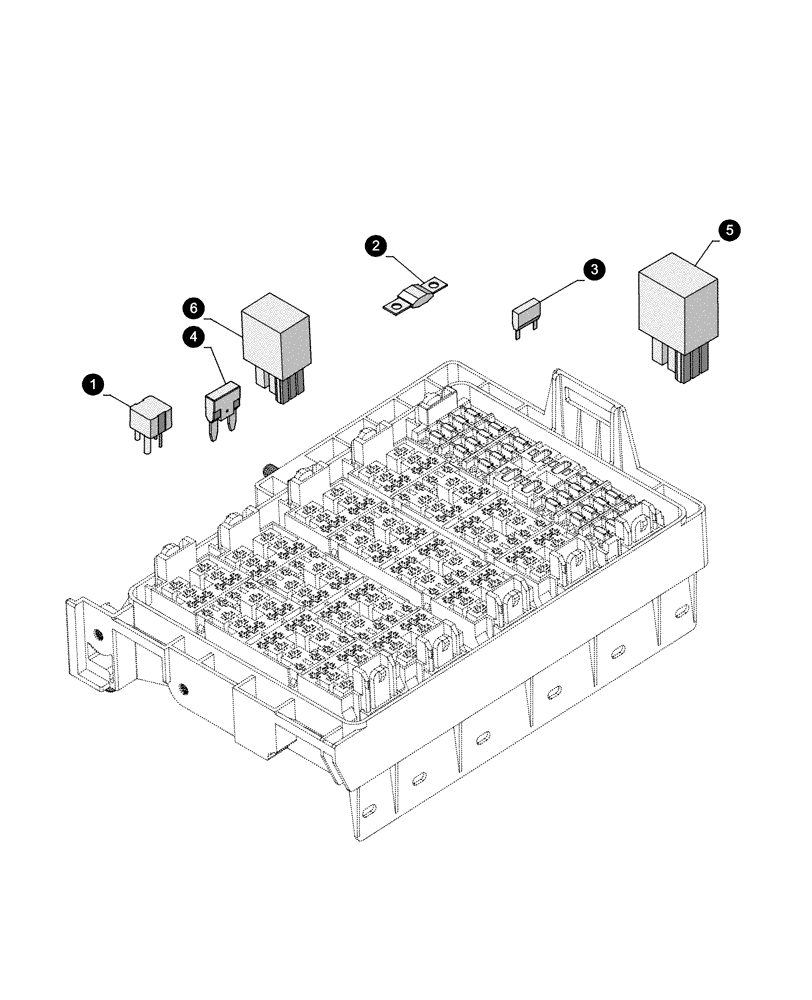

Схема запчастей Case IH FARMALL 115U - (05.100.04[03]) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE
5
1
3
4
2

Артикул

Название

Примечание

Количество

1

82030798

RELAY,12V, 70A

12V, 70A

1шт.

Valid with FARMALL 105U-EFFICIENT POWER TRACTOR - TIER 4A, FARMALL 115U-EFFICIENT POWER TRACTOR - TIER\n4A, FARMALL 95U-EFFICIENT POWER TRACTOR - TIER 4A Models

1шт.

2

84157157

RELAY,12V, 20A, Micro

12V, 20A, Microrelay

1шт.

Valid with FARMALL 105U-EFFICIENT POWER TRACTOR - TIER 4A, FARMALL 115U-EFFICIENT POWER TRACTOR - TIER\n4A, FARMALL 95U-EFFICIENT POWER TRACTOR - TIER 4A Models

1шт.

3

87522595

FUSE,7.5A, Mini, Brown

7.5A, Minival

1шт.

Valid with FARMALL 105U-EFFICIENT POWER TRACTOR - TIER 4A, FARMALL 115U-EFFICIENT POWER TRACTOR - TIER\n4A, FARMALL 95U-EFFICIENT POWER TRACTOR - TIER 4A Models

1шт.

4

10401190

FUSE,20A, Mini, Yellow

20A, Minival

1шт.

Valid with FARMALL 105U-EFFICIENT POWER TRACTOR - TIER 4A, FARMALL 115U-EFFICIENT POWER TRACTOR - TIER\n4A, FARMALL 95U-EFFICIENT POWER TRACTOR - TIER 4A Models

1шт.

4

87522597

FUSE,10A, Mini, Red

10A, Minival

1шт.

Valid with FARMALL 105U-EFFICIENT POWER TRACTOR - TIER 4A, FARMALL 115U-EFFICIENT POWER TRACTOR - TIER\n4A, FARMALL 95U-EFFICIENT POWER TRACTOR - TIER 4A Models

1шт.

5

87392809

RELAY,High Current, 12V, 190A

12V, 190A

1шт.

Valid with FARMALL 105U-EFFICIENT POWER TRACTOR - TIER 4A, FARMALL 115U-EFFICIENT POWER TRACTOR - TIER\n4A, FARMALL 95U-EFFICIENT POWER TRACTOR - TIER 4A Models

1шт.

Выбрано товаров: 12
