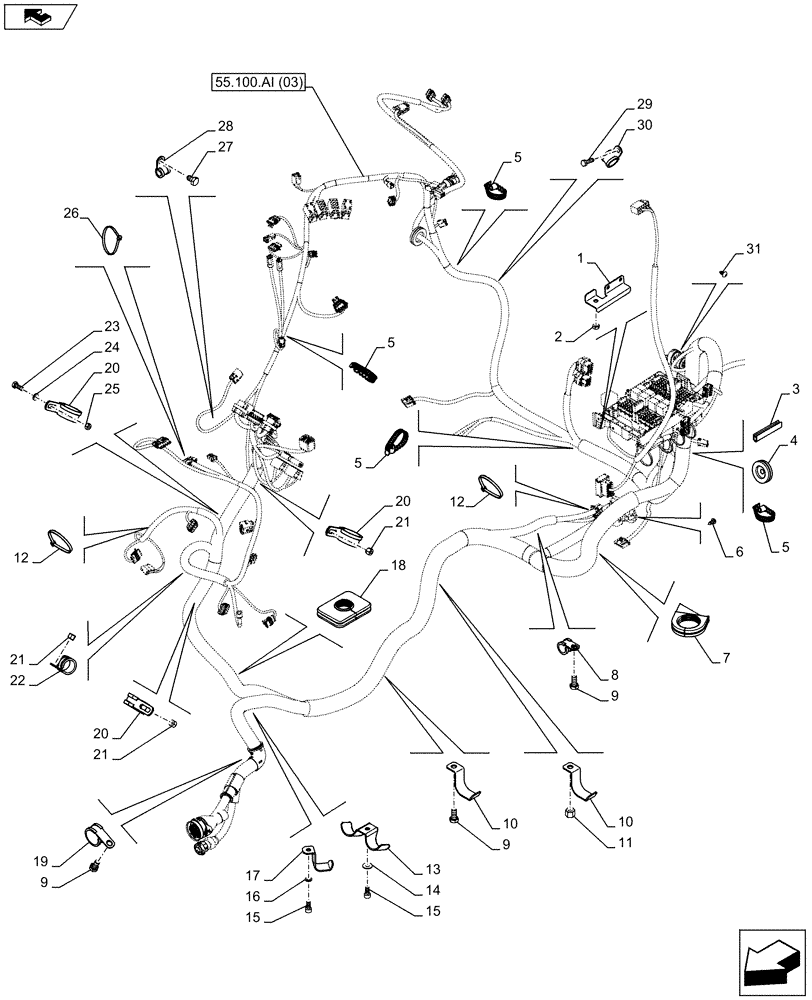

Запчасти Case IH FARMALL 115U (55.100.AI[04]) - STD + VAR - 390754 - MAIN HARNESS, CABLE CLIP, BRACKET, NA - END YR 10-MAR-2013 (55) - ELECTRICAL SYSTEMS

1

84474008

BRACKET

Wiper Motor Timer

1шт.

2

15896211

NUT,M6, Cl 8

1шт.

3

87747801

SEAL,60mm L

1шт.

4

10397780

INSULATING RING

D30 x 2.5mm

1шт.

5

85805383

CABLE TIE

170mm

5шт.

6

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

2шт.

7

84550801

GROMMET

1шт.

8

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

1шт.

9

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

10

84530712

BRACKET

Cab Floor

3шт.

11

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

12

14560187

COLLAR,199mm L

2шт.

13

84564064

BRACKET

1шт.

14

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

15

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

16

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

17

84530713

BRACKET

Front Cab Floor

1шт.

18

84408117

GROMMET

1шт.

19

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

1шт.

20

47374986

CLAMP,32mm ID, 7mm Bolt Hole, P Type

3шт.

21

12574211

NUT,M6 x 1, Cl 8

3шт.

22

10419501

CLAMP,22mm, Coat, P Type

1шт.

23

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

24

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

25

15896214

NUT,M6, Cl 8

1шт.

26

14560287

CABLE TIE,207.00mm L

1шт.

27

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

28

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

1шт.

29

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

30

10418701

CLAMP,28mm, Coat, P Type

1шт.

31

16082104

SELF-TAP SCREW,Spcl, Pozidriv Pan Hd, M3 x 2 x 8mm, HI-LO

4шт.
