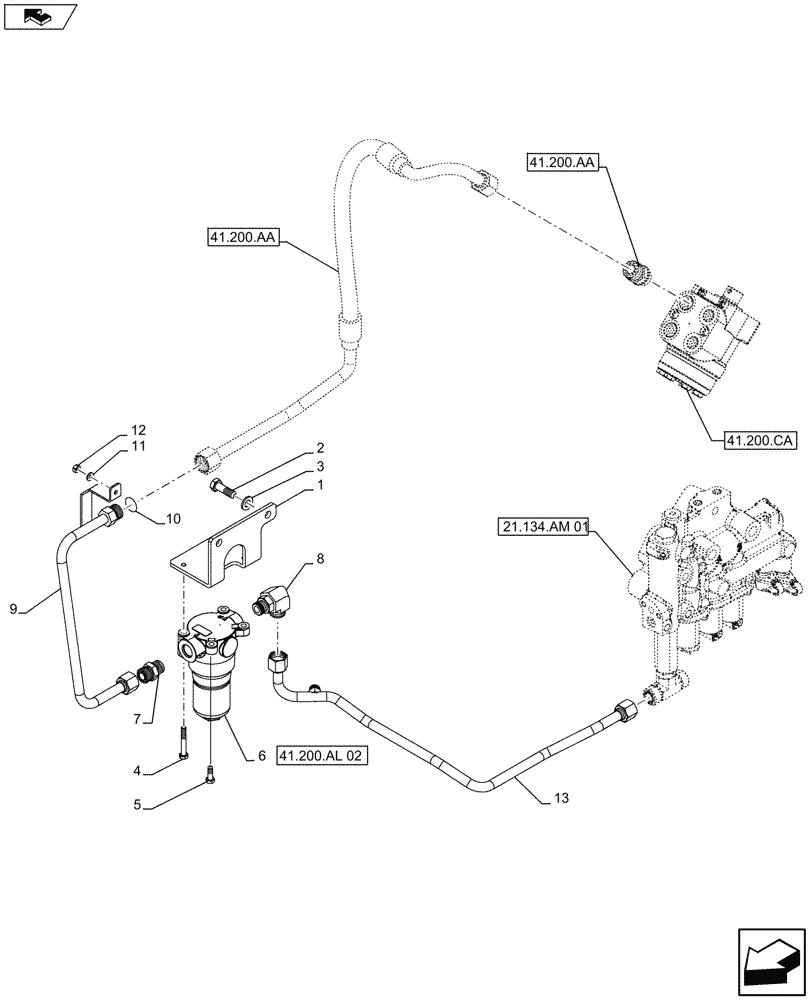

Запчасти Case IH FARMALL 115U (41.200.AL[01]) - STD + VAR - 331690, 743911 - STEERING VALVE, FILTER & LINE (41) - STEERING

1

84403923

BRACKET

1шт.

2

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

3

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

4

86900240

BOLT,Hex, M8 x 55mm, Cl 8.8

2шт.

5

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

2шт.

6

84256436

HYDRAULIC OIL FILTER

ASSY

1шт.

7

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

8

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

9

84583281

TUBE

To Steering Filter, O-Ring not included

1шт.

10

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

12

15896214

NUT,M6, Cl 8

1шт.

13

84583283

TUBE

From Filter to PS Valve

1шт.
