(41.200.AA) - STD + VAR - 392644 - STEERING VALVE, HYDR LINES

Запчасти Case IH FARMALL 115U (41.200.AA) - STD + VAR - 392644 - STEERING VALVE, HYDR LINES (41) - STEERING

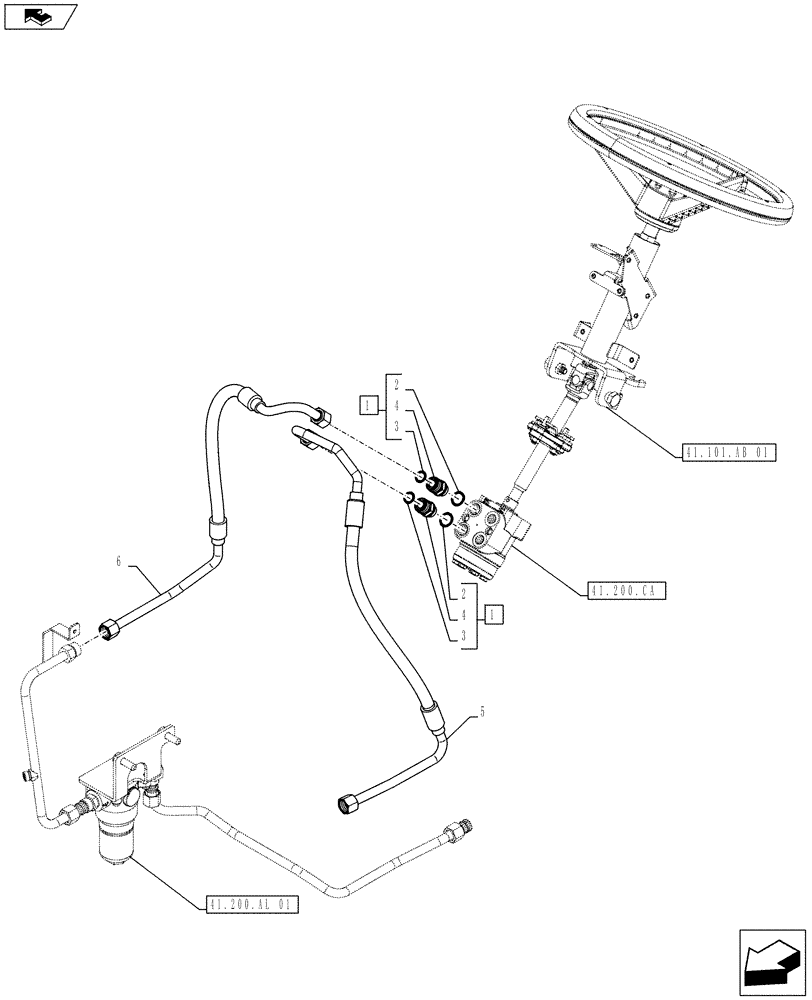

Схема запчастей Case IH FARMALL 115U - (41.200.AA) - STD + VAR - 392644 - STEERING VALVE, HYDR LINES (41) - STEERING
home
4
6
1
3
1
2
3
2
5
4
41.200.al 01
41.101.ab 01
41.200.ca
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5194408

HYD CONNECTOR

ASSY, Incl 2 - 4

2шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

Hydraulic Connector, Incl in 1

2шт.

5

47365984

PIPE

Delivery for Steering

1шт.

6

84548910

PIPE

Return to Steering

1шт.

Выбрано товаров: 6
