(39.140.AC[03]) - VAR - 331775 - FRONT WEIGHT CARRIER, W/ 2 WEIGHTS, ISO

Запчасти Case IH FARMALL 115U (39.140.AC[03]) - VAR - 331775 - FRONT WEIGHT CARRIER, W/ 2 WEIGHTS, ISO (39) - FRAMES AND BALLASTING

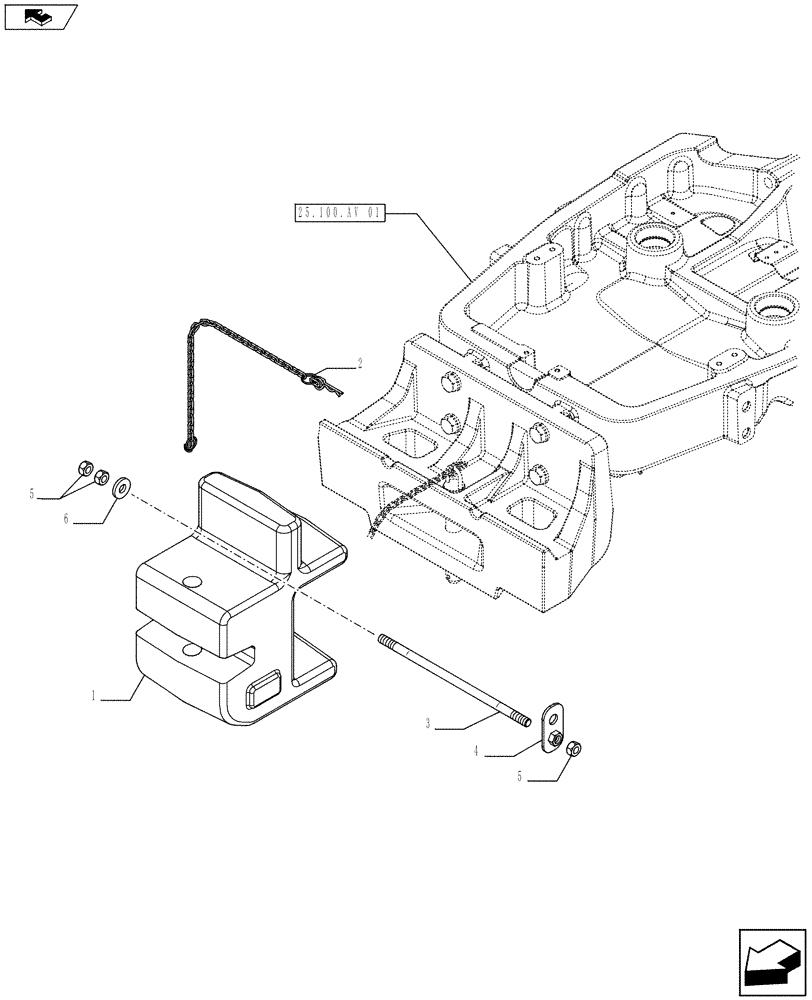

Схема запчастей Case IH FARMALL 115U - (39.140.AC[03]) - VAR - 331775 - FRONT WEIGHT CARRIER, W/ 2 WEIGHTS, ISO (39) - FRAMES AND BALLASTING
25.100.av 01
2
6
5
5
3
4
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82024272

SUPPORT,110Kg

1шт.

2

47132417

PIN,3.6mm OD x 64mm L

1шт.

3

82028306

THREADED ROD,M16 x 2 x 385mm L

1шт.

4

44995007

CLAMP,Grey

1шт.

5

12163325

NUT,Hex, M16 x 2, Cl 10, ZND

3шт.

6

2974088

WASHER,17mm ID x 40mm OD x 6mm Thk

1шт.

Выбрано товаров: 6
