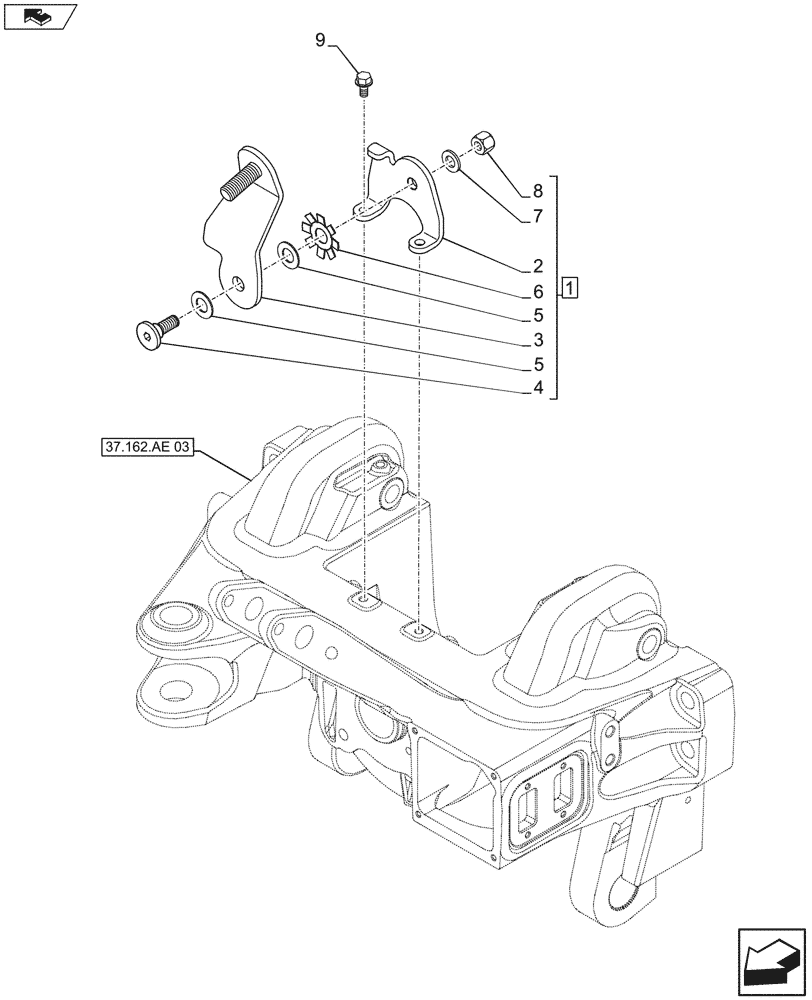

Запчасти Case IH FARMALL 115U (37.162.AE[01A]) - STD + VAR - 331789, 390789 - 3 POINT HITCH, FRONT, BRACKET, W/O FRONT PTO - BEGIN YR 24-JUN-2013 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47417444

BRACKET

ASSY, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

4

47426292

SCREW

1шт.

5

47417374

WASHER,16mm ID x 30mm OD x 1.5mm Tnk

2шт.

6

47389397

SPRING

1шт.

7

14496724

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

8

16105011

NUT,Hex, M12 x 1.25, Cl 8

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.
