Запчасти Case IH FARMALL 115U (37.120.AY[02]) - VAR - 330912, 331918, 332918, 333918 - TOWING EQUIPMENT, SUPPORT, HITCH, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

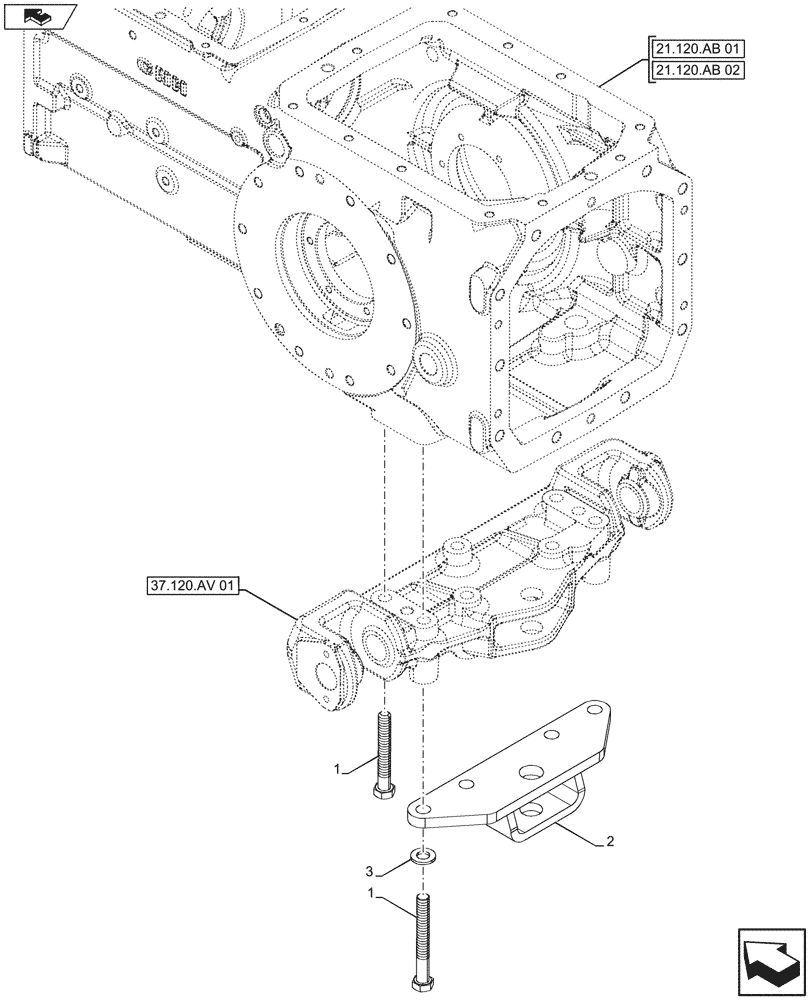

Схема запчастей Case IH FARMALL 115U - (37.120.AY[02]) - VAR - 330912, 331918, 332918, 333918 - TOWING EQUIPMENT, SUPPORT, HITCH, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
21.120.ab 02
1
3
1
2
home
37.120.av 01
21.120.ab 01

Артикул

Название

Примечание

Количество

1

15864224

BOLT,Hex, M16 x 1.5 x 115mm, Cl 8.8

3шт.

2

82003409

BRACKET

Cnh Dark Grey

1шт.

3

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

4

15864334

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

4шт.

Выбрано товаров: 4
