(37.120.AV[01]) - SDT + VAR - 332953, 392953, 743598 - TOWING EQUIPMENT

Запчасти Case IH FARMALL 115U (37.120.AV[01]) - SDT + VAR - 332953, 392953, 743598 - TOWING EQUIPMENT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

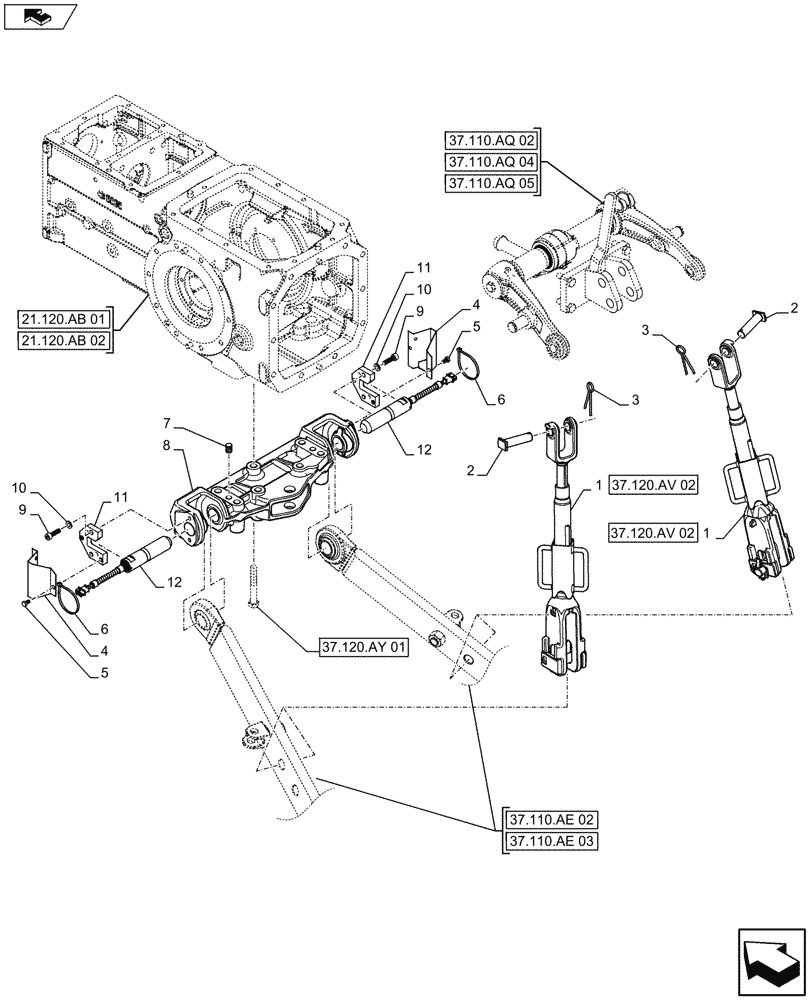

Схема запчастей Case IH FARMALL 115U - (37.120.AV[01]) - SDT + VAR - 332953, 392953, 743598 - TOWING EQUIPMENT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.110.aq 05
9
12
11
9
5
4
3
2
6
1
7
1
10
8
5
6
10
11
2
12
3
home
4
37.120.ay 01
37.120.av 02
37.120.av 02
37.110.ae 03
37.110.aq 04
37.110.aq 02
21.120.ab 01
21.120.ab 02
37.110.ae 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84479014

LIFTING ROD

ASSY

2шт.

2

47126271

PIN,22mm OD x 84mm L

2шт.

3

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

4

83998830

COVER

1шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

6

14560287

CABLE TIE,207.00mm L

2шт.

7

5119529

DOWEL,15mm OD x 22mm L

2шт.

8

5185802

SUPPORT

1шт.

9

47134668

HEX SOC SCREW,M10 x 1.25 x 35mm

4шт.

10

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

4шт.

11

83998827

RETAINER

2шт.

12

87661284

SENSOR

2шт.

Выбрано товаров: 12
