Запчасти Case IH FARMALL 115U (37.110.AQ[04]) - VAR - 743597 - REMOTE CONTROL VALVE, LIFT ARM, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

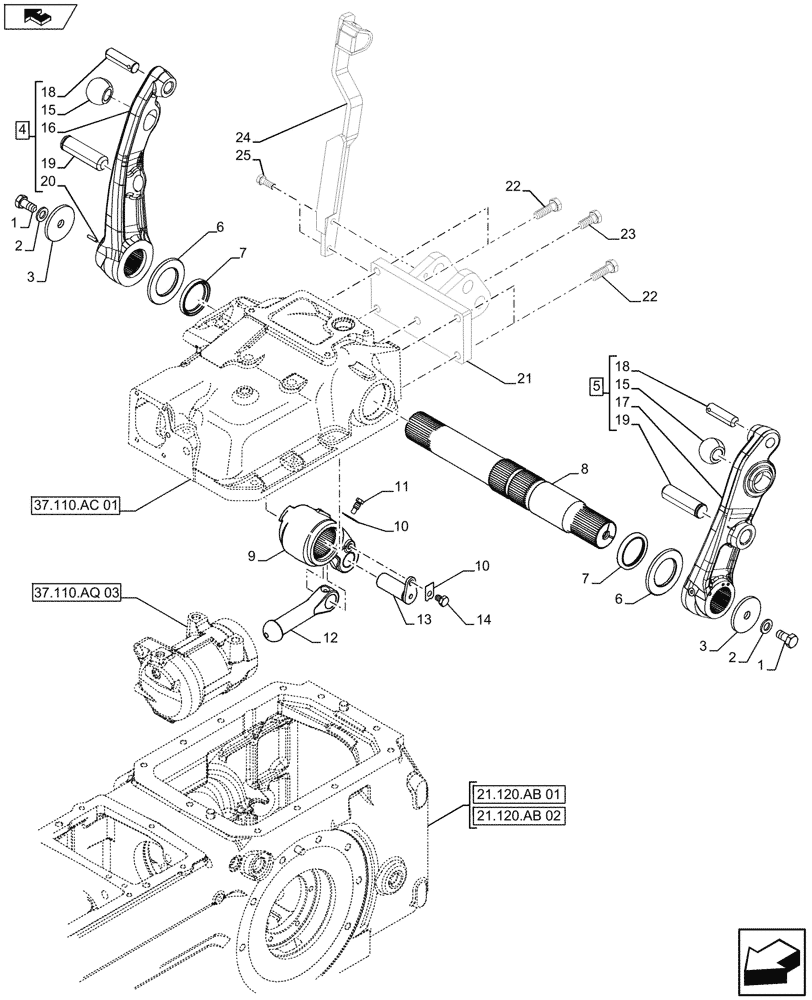

Схема запчастей Case IH FARMALL 115U - (37.110.AQ[04]) - VAR - 743597 - REMOTE CONTROL VALVE, LIFT ARM, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
21.120.ab 02
home
23
22
7
21
8
25
2
22
10
19
6
6
3
17
24
13
20
2
1
4
19
11
1
18
9
3
18
7
12
15
14
16
5
10
15
21.120.ab 01
37.110.aq 03
37.110.ac 01

Артикул

Название

Примечание

Количество

1

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

2

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

3

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

4

5179827

LIFT ARM

ASSY, RH, Incl 15 - 16, 18 - 20

1шт.

5

5183178

LIFT ARM

ASSY, RH, Incl 15, 17 - 19

1шт.

6

5111082

SPACER,55mm ID x 90mm OD x 6mm L

2шт.

7

5159078

SEAL,55mm ID x 70mm OD x 8mm Thk

2шт.

8

5117187

ROCKSHAFT,488mm L, 48T, 42T

1шт.

9

5165509

ARM

1шт.

10

14198810

LOCKING PLATE,M10

1шт.

11

5117190

SET SCREW,M10 x 1.25 x 23mm

1шт.

12

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

13

5122356

PIN,30mm OD x 74mm L

1шт.

14

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

15

5111282

BUSHING,22mm ID x 48mm OD x 35mm L

2шт.

16

NSS

NOT SOLD SEPARAT

Arm Power Lift, RH, Incl in 4

1шт.

17

NSS

NOT SOLD SEPARAT

Arm Power Lift, LH, Incl in 5

1шт.

18

NSS

NOT SOLD SEPARAT

Pin, Incl in 4

1шт.

18

NSS

NOT SOLD SEPARAT

Pin, Incl in 5

1шт.

19

NSS

NOT SOLD SEPARAT

Pivot, Incl in 4

1шт.

19

NSS

NOT SOLD SEPARAT

Pivot, Incl in 5

1шт.

20

10335010

DOWEL,M5 x 22

1шт.

21

47368168

SUPPORT

1шт.

22

11394334

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

4шт.

23

11408334

BOLT,Hex, M14 x 1.5 x 35, 10.9, Full Thd

1шт.

24

47368260

BRACKET

1шт.

25

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 27
