Запчасти Case IH FARMALL 115U (37.110.AQ[03]) - VAR - 743597 - REMOTE CONTROL VALVE, LIFT ARM, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

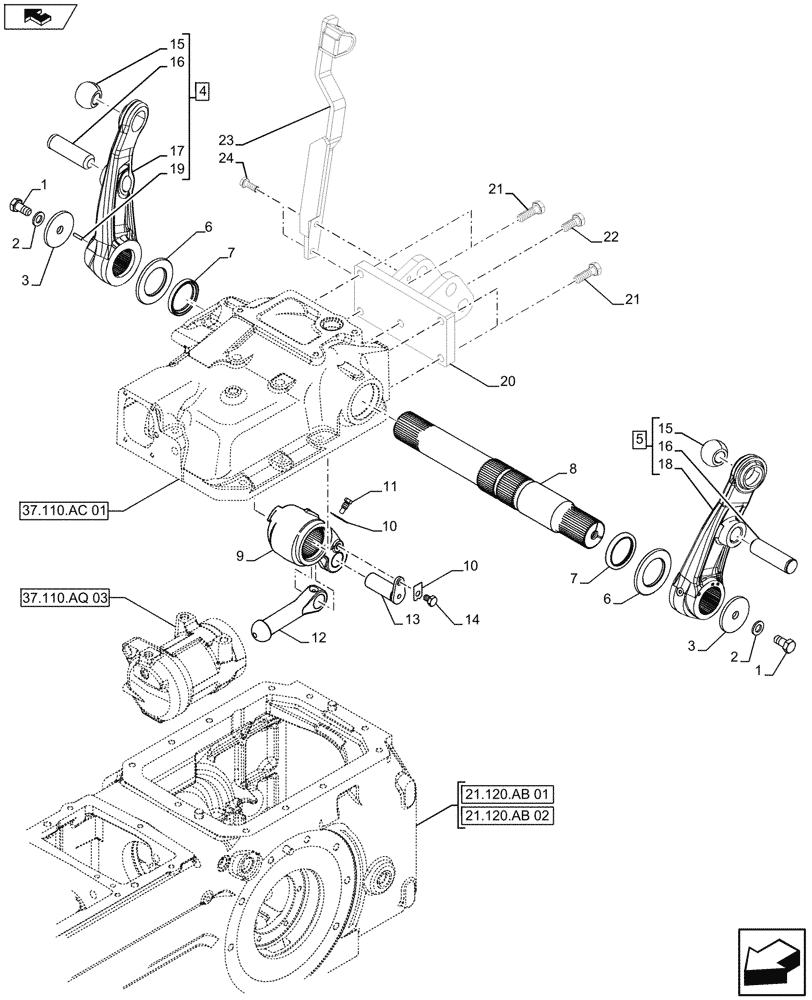

Схема запчастей Case IH FARMALL 115U - (37.110.AQ[03]) - VAR - 743597 - REMOTE CONTROL VALVE, LIFT ARM, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
21.120.ab 02
home
2
20
10
22
2
21
24
1
10
1
8
18
5
14
13
3
23
3
7
15
11
6
7
6
21
15
16
9
12
4
16
19
17
21.120.ab 01
37.110.aq 03
37.110.ac 01

Артикул

Название

Примечание

Количество

1

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

2

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

3

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

4

5173542

LIFT ARM

ASSY, RH, Incl 15 - 17, 19

1шт.

5

5183176

LIFT ARM

ASSY, LH, Incl 15 - 16, 18

1шт.

6

5111082

SPACER,55mm ID x 90mm OD x 6mm L

2шт.

7

5159078

SEAL,55mm ID x 70mm OD x 8mm Thk

2шт.

8

5117187

ROCKSHAFT,488mm L, 48T, 42T

1шт.

9

5165509

ARM

1шт.

10

14198810

LOCKING PLATE,M10

1шт.

11

5117190

SET SCREW,M10 x 1.25 x 23mm

1шт.

12

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

13

5122356

PIN,30mm OD x 74mm L

1шт.

14

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

15

5111282

BUSHING,22mm ID x 48mm OD x 35mm L

2шт.

16

NSS

NOT SOLD SEPARAT

Pivot, Incl in 4

1шт.

16

NSS

NOT SOLD SEPARAT

Pivot, Incl in 5

1шт.

17

NSS

NOT SOLD SEPARAT

Arm Power Lift, RH, Incl in 4

1шт.

18

NSS

NOT SOLD SEPARAT

Arm Power Life, LH, Incl in 5

1шт.

19

10335010

DOWEL,M5 x 22

1шт.

20

47368168

SUPPORT

1шт.

21

11394334

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

4шт.

22

11408334

BOLT,Hex, M14 x 1.5 x 35, 10.9, Full Thd

1шт.

23

47368260

BRACKET

1шт.

24

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 25
