(37.106.AA[04]) - VAR - 331945 - AUTOMATIC PICK-UP, TOW HOOK, COMPONENTS, ISO

Запчасти Case IH FARMALL 115U (37.106.AA[04]) - VAR - 331945 - AUTOMATIC PICK-UP, TOW HOOK, COMPONENTS, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

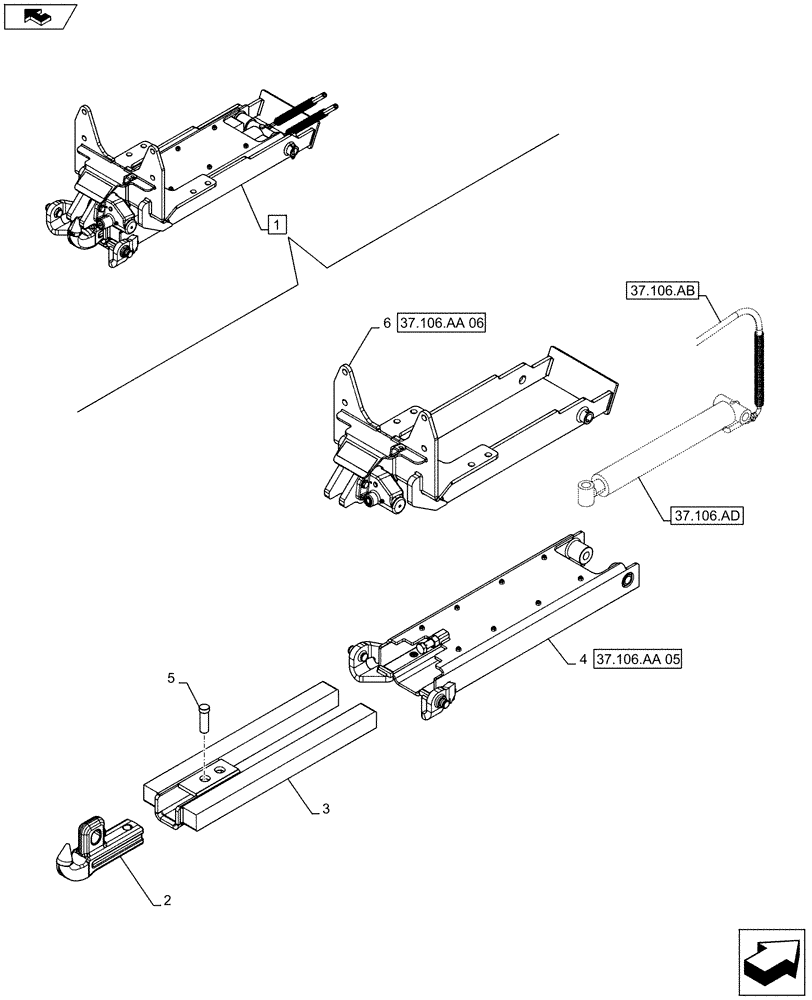

Схема запчастей Case IH FARMALL 115U - (37.106.AA[04]) - VAR - 331945 - AUTOMATIC PICK-UP, TOW HOOK, COMPONENTS, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
home
1
4
5
6
3
2
37.106.ad
37.106.aa 06
37.106.aa 05
37.106.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47889604

PICK-UP,0

Cnh Grey, ASSY, Incl 2 - 6

1шт.

See Pick-Up Components also in Figures 37.106.AB, 37.106.AD

1шт.

2

84351317

HOOK

1шт.

3

47401458

SUPPORT

1шт.

4

47889603

HANGER,0

ASSY

1шт.

5

82036199

PIN,30mm OD x 87mm L

2шт.

6

47406992

FRAME

ASSY

1шт.
