(37.106.AA[01]) - VAR - 331945 - AUTOMATIC PICK-UP HITCH, SUPPORT & TOW HOOK, ISO

Запчасти Case IH FARMALL 115U (37.106.AA[01]) - VAR - 331945 - AUTOMATIC PICK-UP HITCH, SUPPORT & TOW HOOK, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

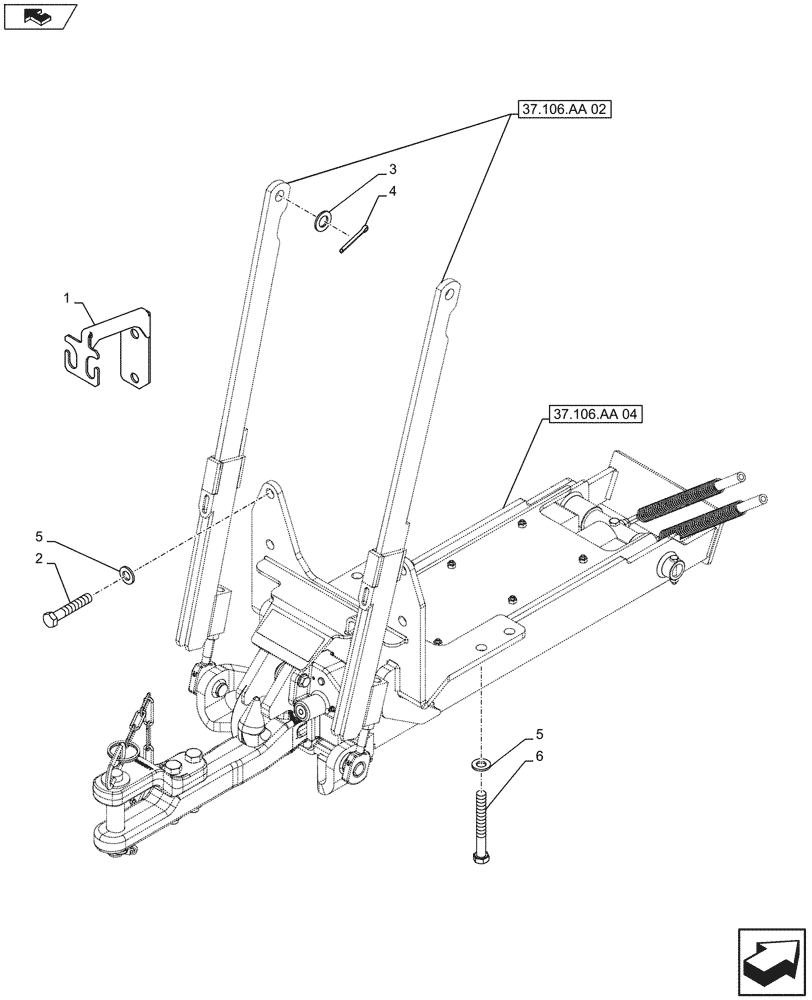

Схема запчастей Case IH FARMALL 115U - (37.106.AA[01]) - VAR - 331945 - AUTOMATIC PICK-UP HITCH, SUPPORT & TOW HOOK, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.106.aa 02
3
home
4
2
5
5
1
6
37.106.aa 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47562027

BRACKET

1шт.

2

15981534

BOLT,Hex, M16 x 1.5 x 90mm, Cl 10.9

4шт.

3

14497101

WASHER,M20 x 37 x 3

2шт.

4

10797801

COTTER PIN,M6.3 x 50.00mm

2шт.

5

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.

6

15864334

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

4шт.
