(37.100.AF[10]) - VAR - 330952 - TOW HOOK, BALL (80 MM), ISO

Запчасти Case IH FARMALL 115U (37.100.AF[10]) - VAR - 330952 - TOW HOOK, BALL (80 MM), ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

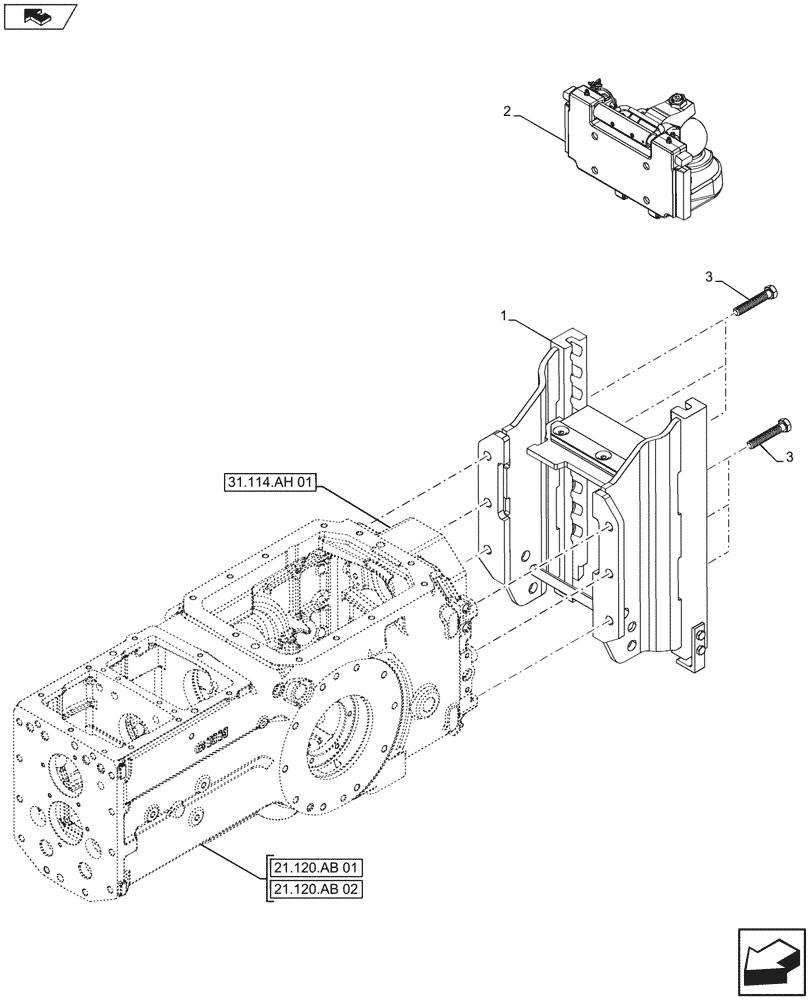

Схема запчастей Case IH FARMALL 115U - (37.100.AF[10]) - VAR - 330952 - TOW HOOK, BALL (80 MM), ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
21.120.ab 02
3
2
1
3
home
21.120.ab 01
31.114.ah 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47623679

FRAME

1шт.

2

82038785

TOW HOOK

Slider, 80mm Ball

1шт.

3

15981521

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

6шт.

Выбрано товаров: 3
