(37.100.AF[06]) - VAR - 330897 - DRAWBAR AND HITCH, TOW HOOK, ISO

Запчасти Case IH FARMALL 115U (37.100.AF[06]) - VAR - 330897 - DRAWBAR AND HITCH, TOW HOOK, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

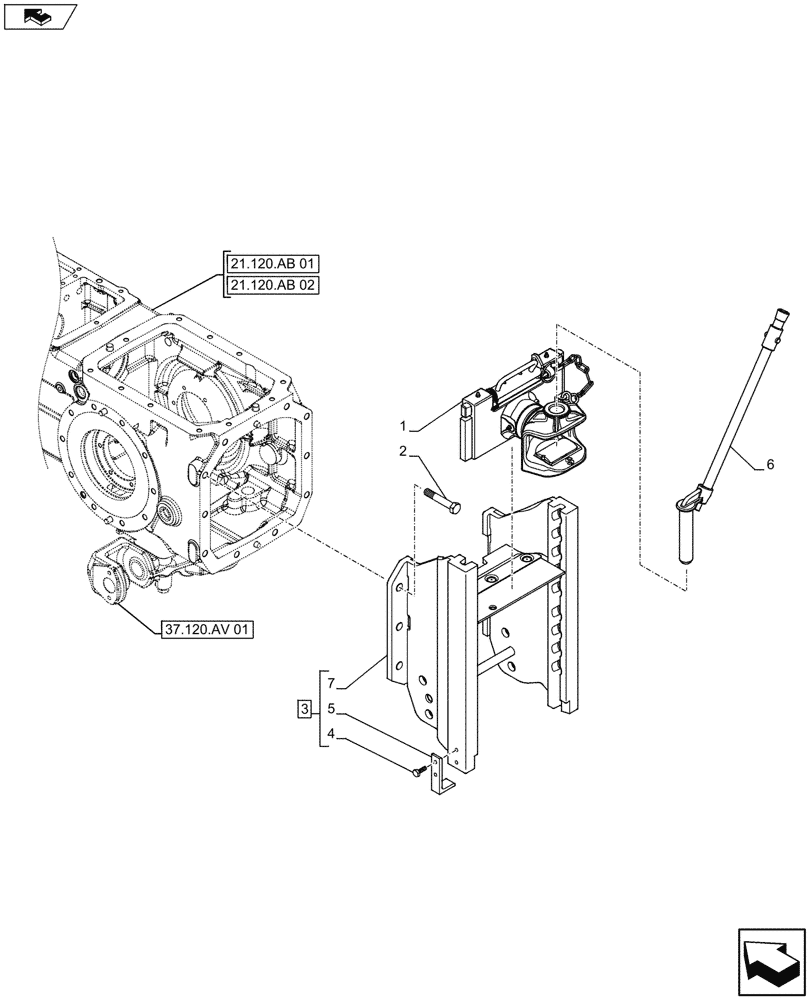

Схема запчастей Case IH FARMALL 115U - (37.100.AF[06]) - VAR - 330897 - DRAWBAR AND HITCH, TOW HOOK, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
21.120.ab 02
5
7
2
4
3
home
6
1
37.120.av 01
21.120.ab 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5199447

TOW HOOK

1шт.

2

15981521

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

6шт.

3

84489553

FRAME

ASSY, Incl 4 - 5, 7

1шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

5199462

BRACKET

2шт.

6

5199449

PIN,31mm OD x 568.69mm L

1шт.

7

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

Выбрано товаров: 7
