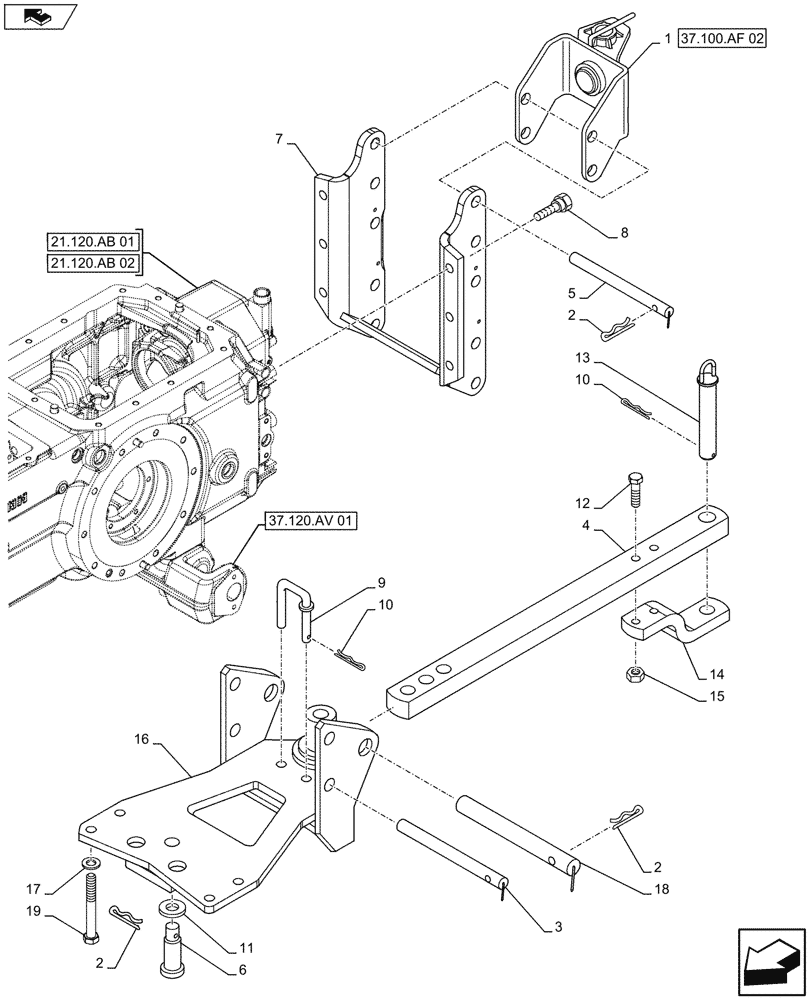

Запчасти Case IH FARMALL 115U (37.100.AF[01]) - VAR - 330893 - DRAWBAR AND HITCH, TOW HOOK, ISO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84151608

TOW HOOK

ASSY, EEC

1шт.

2

44007661

COTTER PIN,33.2mm OD x 78mm L

6шт.

3

5117437

PIN,22mm OD x 325mm L

2шт.

4

47135733

DRAWBAR,787mm L x 60mm W x 30mm Thk

1шт.

5

84198704

PIN

2шт.

6

5123642

PIN

1шт.

7

5199412

SUPPORT

1шт.

8

15981537

BOLT,Hex, M16 x 1.5 x 90mm, Cl 10.9

6шт.

9

5123643

PIN

1шт.

10

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

11

562106

WASHER,25.50mm ID x 45.00mm OD

D=28

1шт.

12

15984834

SCREW,Hex, M18 x 1.5 x 80mm, Cl 10.9

2шт.

13

596060

HITCH PIN,28mm OD x 192mm L

1шт.

14

598607

SUPPORT

1шт.

15

10721024

NUT,M18 x 1.5, Cl 10

2шт.

16

5140525

HOOK

1шт.

17

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

18

87302932

PIN,30mm OD x 335mm L

1шт.

19

15864334

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

4шт.
