(37.100.AB[02]) - VAR - 330905 - DRAWBAR AND HITCH, DRAWBAR, SUPPORT, NA

Запчасти Case IH FARMALL 115U (37.100.AB[02]) - VAR - 330905 - DRAWBAR AND HITCH, DRAWBAR, SUPPORT, NA (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

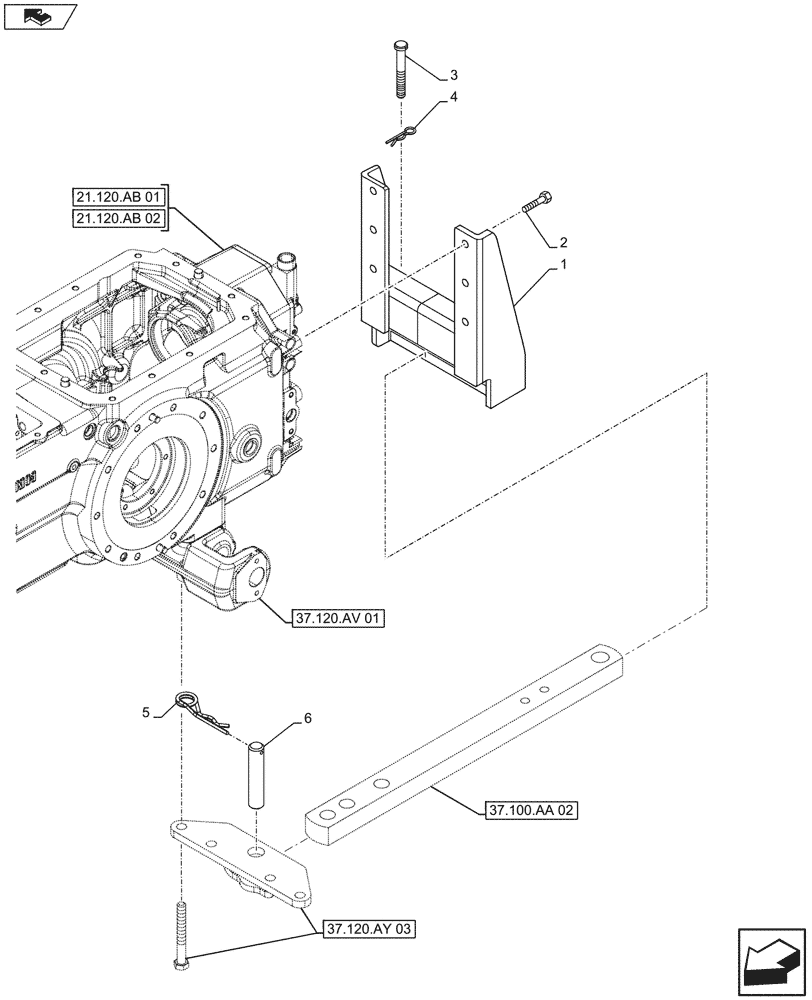

Схема запчастей Case IH FARMALL 115U - (37.100.AB[02]) - VAR - 330905 - DRAWBAR AND HITCH, DRAWBAR, SUPPORT, NA (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
21.120.ab 01
1
6
37.120.ay 03
21.120.ab 02
home
4
37.120.av 01
5
37.100.aa 02
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5199428

SUPPORT

1шт.

2

15981524

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

6шт.

3

5181758

PIN,16mm OD x 119.5mm L

2шт.

4

82026318

COTTER PIN,1/8 x 2 5/16

Spring Retainer, 1/8' x 2-5/16'

4шт.

5

82000094

SPRING,40mm OD x 142mm L

1шт.

6

82006933

PIN,28mm OD x 134mm L

1шт.

Выбрано товаров: 6
