(37.100.AA[04]) - VAR - 330912, 332918, 333918 - DRAWBAR AND HITCH, DRAWBAR, ISO (33MM HOLE/FRANCE)

Запчасти Case IH FARMALL 115U (37.100.AA[04]) - VAR - 330912, 332918, 333918 - DRAWBAR AND HITCH, DRAWBAR, ISO (33MM HOLE/FRANCE) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

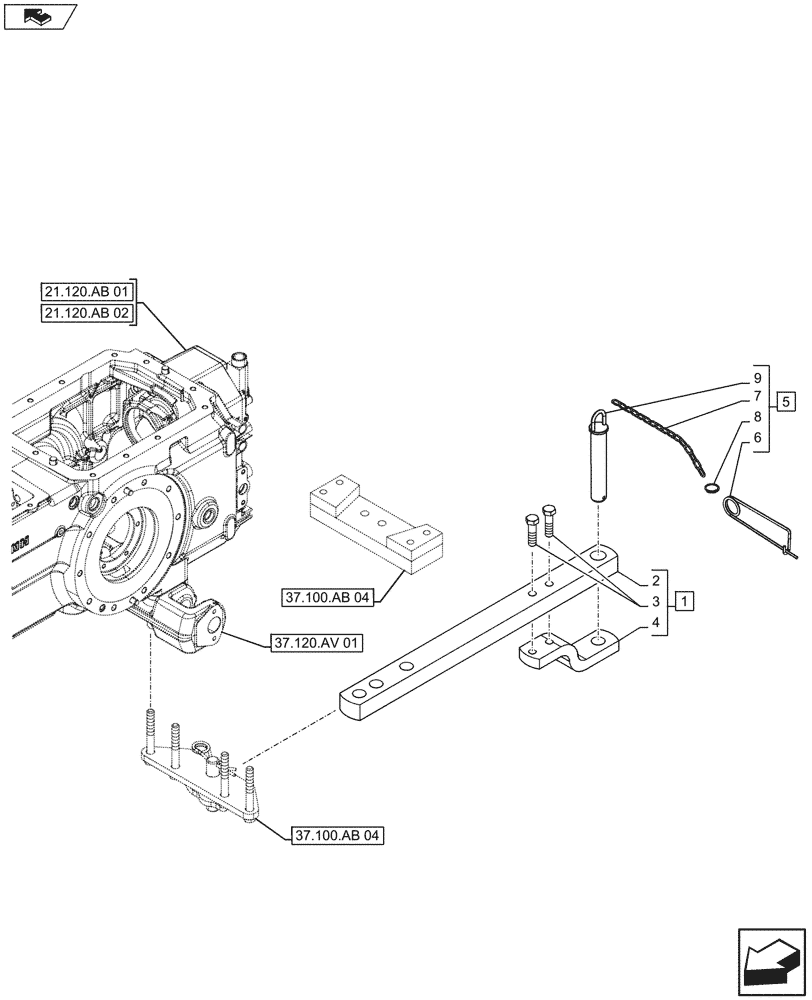

Схема запчастей Case IH FARMALL 115U - (37.100.AA[04]) - VAR - 330912, 332918, 333918 - DRAWBAR AND HITCH, DRAWBAR, ISO (33MM HOLE/FRANCE) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.100.ab 04
home
6
7
3
8
9
4
5
1
2
37.120.av 01
21.120.ab 01
21.120.ab 02
37.100.ab 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84129985

DRAWBAR

ASSY, Incl 2 - 4

1шт.

2

5180877

DRAWBAR,780mm L x 60mm W x 40mm Thk

1шт.

3

11119133

BOLT,Hex, M16 x 60, 10.9, Full Thd

2шт.

4

82010169

CLEVIS,251mm L x 60mm W x 25mm Thk, 70mm Offset

1шт.

5

5163732

PIN,32mm OD x 182mm L

ASSY, Incl 6 - 9

1шт.

6

5152004

HAIR PIN COTTER,195mm L

1шт.

7

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

8

44901192

SNAP RING,25mm ID

1шт.

9

5155491

PIVOT

1шт.
