(37.100.AA[03]) - VAR - 331918 - DRAWBAR AND HITCH, DRAWBAR, ISO (29MM HOLE/ITALY)

Запчасти Case IH FARMALL 115U (37.100.AA[03]) - VAR - 331918 - DRAWBAR AND HITCH, DRAWBAR, ISO (29MM HOLE/ITALY) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

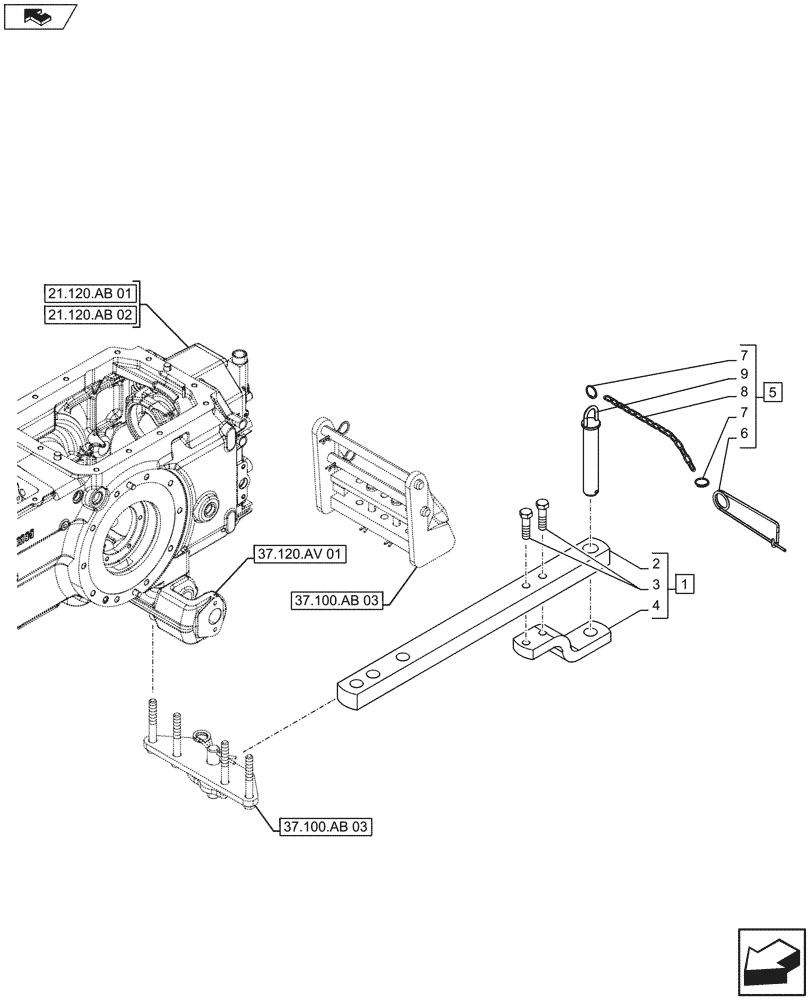

Схема запчастей Case IH FARMALL 115U - (37.100.AA[03]) - VAR - 331918 - DRAWBAR AND HITCH, DRAWBAR, ISO (29MM HOLE/ITALY) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
21.120.ab 02
2
home
3
6
9
1
7
7
8
4
5
37.120.av 01
21.120.ab 01
37.100.ab 03
37.100.ab 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87476563

DRAWBAR

ASSY, Incl 2 - 4

1шт.

2

82010172

DRAWBAR

1шт.

3

11119133

BOLT,Hex, M16 x 60, 10.9, Full Thd

2шт.

4

82010166

DRAWBAR CLAMP

1шт.

5

5162713

HITCH PIN,28mm OD x 711.5mm L

ASSY, Incl 6 - 9

1шт.

6

5152004

HAIR PIN COTTER,195mm L

1шт.

7

44901192

SNAP RING,25mm ID

2шт.

8

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

9

596060

HITCH PIN,28mm OD x 192mm L

1шт.
